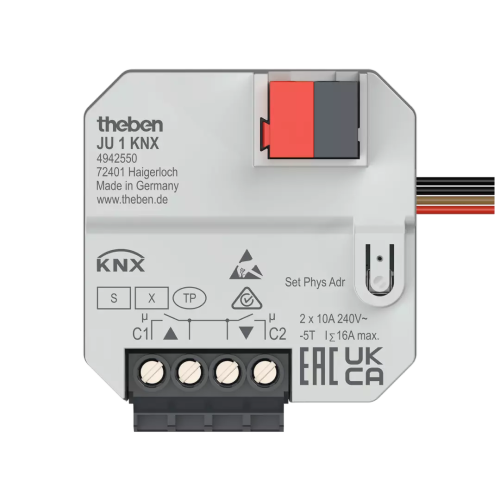

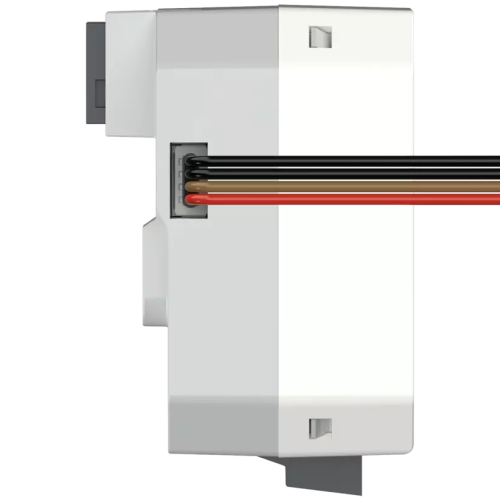

Theben compact JU 1 KNX, flush-mounted KNX actuator for easy installation in switch and junction boxes. These remove the need for time-consuming and costly wiring in the control cabinet.
Function description
- 1-way flush-mounted blind/switch actuator
- Secure communication with support of KNX Data Secure
- For controlling drives for blinds, roller blinds, sun and vision protection devices, skylights, and ventilation flaps
- Integrated automatic ventilation function
- Flexible configuration options: blind actuator or 2-channel switch actuator
- 2 binary inputs for floating contacts such as buttons, switches, window contacts, temperature sensor (I2)
- The binary inputs are assigned to the output as standard (function test before programming)
- Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
Technical data
|
| Operating voltage KNX |
Bus voltage, <4 mA |
| Installation type |
Flush-mounted |
| Type of connection |
Terminal screws | Bus connection: KNX bus terminal |
| Number of channels |
1 |
| Type of contact |
10 A |
| Ambient temperature |
-5°C ... 45°C |
