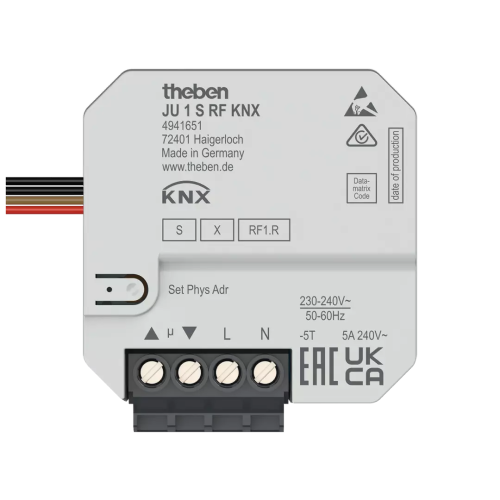

JU 1 S RF KNX

Function description

• Flush-mounted 1-way blind actuator 5 A, KNX TP, Data Secure
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• 1-way blind actuator or 2-way switching actuator
• For controlling drives for blinds, roller blinds, sun and vision protection devices, skylights, and ventilation flaps
• Integrated automatic ventilation function
• Secure communication via KNX-RF with support from KNX Data Secure
• Easy installation due to the compact housing.
• 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
• Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
• The binary inputs are assigned to the output as standard (function test before programming)

Technical data
