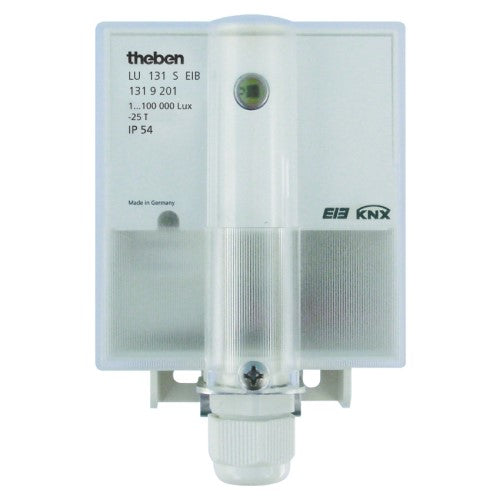

The Theben LUNA 131 S KNX is a brightness and temperature dependent controller for outdoor areas with sun protection channel with automated sun protection especially for blind, awning and shutter applications.
Function description
- Brightness and temperature sensor
- For brightness and temperature dependent controlling in outdoor areas
- 5 freely configurable channels: 1 sun protection channel and 4 universal channels
- Sun protection channel with automated sun protection especially for blind, awning and shutter applications
- Universal channels allow linking of brightness and temperature
- Brightness range from 1 - 100,000 lux
- Temperature range -20 °C to + 55 °C
- Learning object for brightness threshold
Technical data
|
| Operating voltage KNX |
Bus voltage, ≤5 mA |
| Installation type |
Wall installation |
| Type of connection |
KNX bus terminal |
| Measuring range brightness
|
1 – 100000 lx |
| Setting range temperature |
-20°C ... 55°C |
| Ambient temperature |
-25°C ... 55°C |
| Type of protection |
IP 54 |
