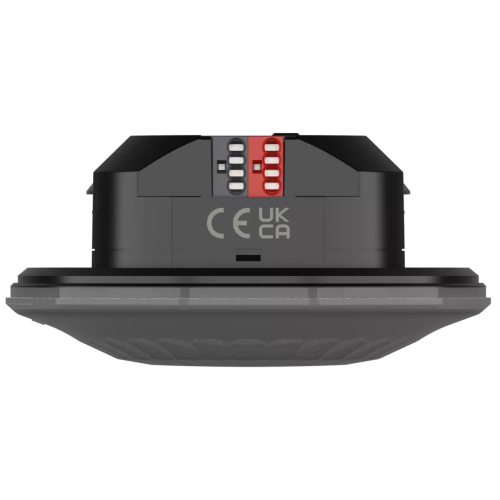

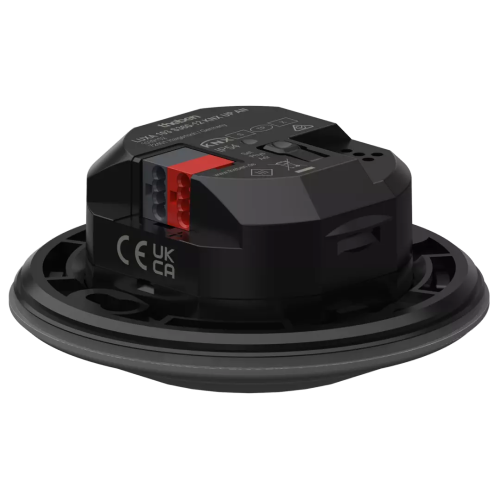

Presence detector (PIR) for flush-mounted ceiling installation indoors, 360° circular detection area, Ø 12 m (113m2) at 3 m mounting height.
Function description
- For KNX bus system, 2 channels light and 2 channels presence for HVAC control
- 2 channels of light with 1 light measurement
- Automatic lighting control with constant light control or switching operation
- Dimmable lighting in switching mode with and without daylight influence
- Integrated temperature sensor
- Day / night switchover via telegram
- Stand-by functionality (orientation light)
- 3 logic channels (AND/OR/XOR)
- KNX Data-Secure
- Operation as fully or semi-automatic possible
- Manual override possible via external KNX push-buttons
- One directional brightness measurement (mixed light measurement)
- Simple adjustment of the brightness measurement
- Short-term presence
- Selectable control speed
- Teach-in function
- Scene functionality
- Locking functions
- Switch-on delay and run-on time presence adjustable
- Extension of the Detection areas through parallel connection
- Detection sensitivity adjustable for outdoor use
- Test operation to check function and Detection areas
- Setting via ETS software (full range of functions)
- Setting via remote control/APP or APP (BLE)
Technical data
|
| Installation height |
2.5 - 6 m |
| Measuring range brightness
|
5 - 1000 lx |
| Detection angle |
360° |
| Type of connection |
KNX bus terminal |
| Installation type |
Ceiling installation |
| Light switch-off delay |
30 s - 60 min |
| Lamp types |
Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDs |
| Light measurement |
Mixed light measurement |
| Presence switch-off delay |
10 s - 120 min |
| Switch-on delay presence |
10 s - 30 min / inactive |
| Ambient temperature |
-25°C ... 55°C |
| Detection range |
113 m² (ø 12 m | 360°) |
| Colour |
White |
| Type of protection |
IP 54 (when fitted) |
| KNX Data Secure |
Yes |

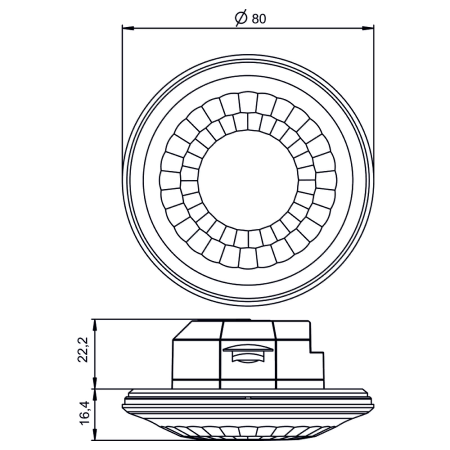

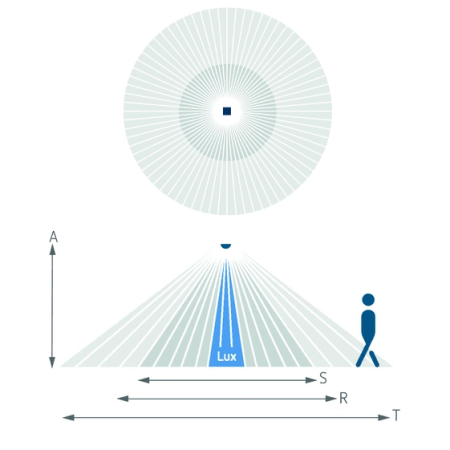

Detection area
| Mounting height (A) |
Sitting (S) |
Diagonally (T) |
Head on to (R) |
| 2,5 m |
13 m² | 4 m |
78 m² | 10 m |
28 m² | 6 m |
| 3 m |
20 m² | 5 m |
113 m² | 12 m |
28 m² | 6 m |
| 3,5 m |
20 m² | 5 m |
78 m² | 10 m |
28 m² | 6 m |
| 4 m |
|
78 m² | 10 m |
28 m² | 6 m |
| 6 m |
|
113 m² | 12 m |
28 m² | 6 |
