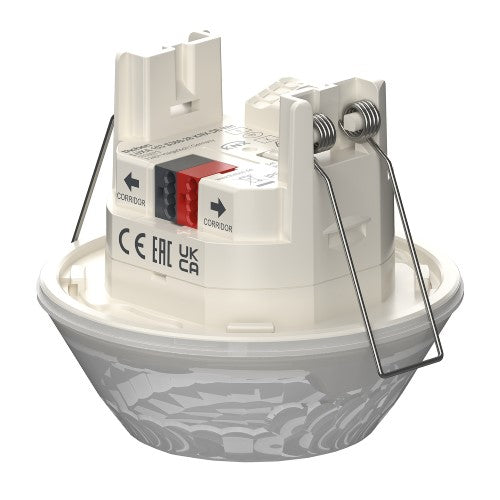

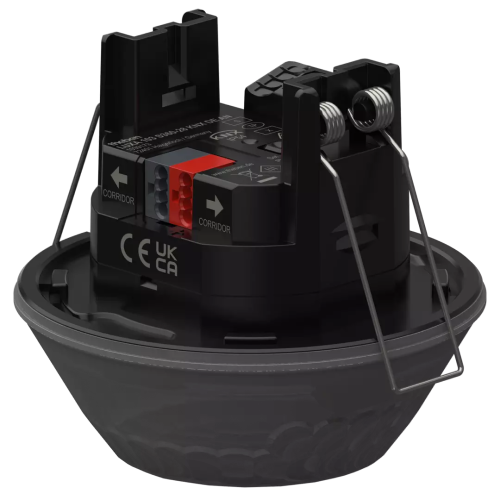

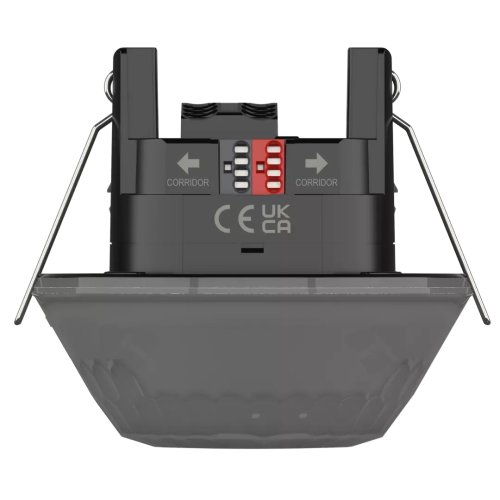

LUXA 103 S360-28 KNX DE WH

Function description

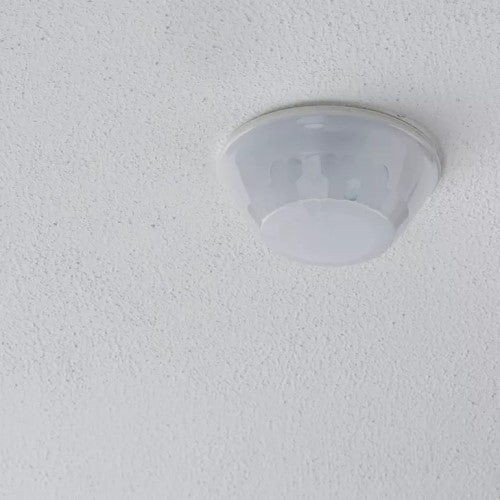

• Presence detector (PIR) for ceiling installationin suspended ceilings indoor
• Rectangular detection area 360°, 28 x 5 m (140 m2) at 3 m mounting height
• For KNX bus system, 2 light channels and 2 presence channels for HVAC control
• 2 channels light with 1 light measurement
• Automatic lighting control with constant light control or switching mode
• Dimmable lighting in switching mode with and without daylight influence
• Integrated temperature sensor
• Day / night switching via telegram
• Stand-by functionality (orientation light)
• 3 logic channels (AND/OR/XOR)
• KNX Data-Secure
• Operation as fully or semi-automatic possible
• Manual override possible via external KNX push-buttons
• One directional brightness measurement (mixed light measurement)
• Simple adjustment of the brightness measurement
• Short-term presence
• Selectable control speed
• Teach-in function
• Scene functionality
• Locking functions
• Switch-on delay and presence follow-up time adjustable
• Extension of the detection area through parallel connection
• Detection sensitivity can be changed for outdoor use
• Test mode for checking function and detection area
• Setting via ETS software (full range of functions)
• Setting via remote control/APP or APP (BLE)
