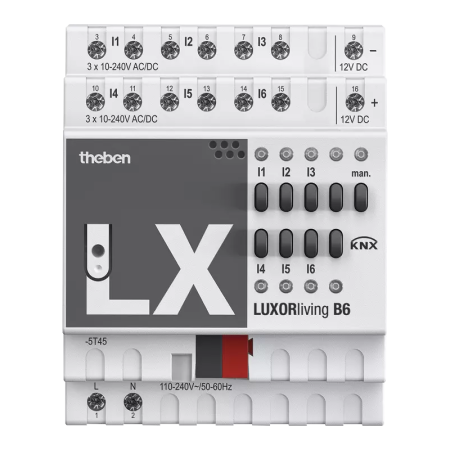

6-way binary input LUXORliving with 6 floating universal and wide-range voltage inputs (10-240 V AC/DC or internally generated auxiliary voltage of approx. 12 V DC) Manual control and LED switching status display for each channel.
Function description
- 6-way binary input LUXORliving
- 6 floating universal and wide-range voltage inputs (10-240 V AC/DC or internally generated auxiliary voltage of approx. 12 V DC)
- Software functions: Switch/push-button, dimming, blinds
- LED switching status display for each channel
- Manual operation on device
Technical data
|
| Operating voltage |
110 – 240 V AC |
| Stand-by consumption |
<0.3 W |
| Width |
4 modules |
| Installation type |
DIN rail |
| Output |
12 V DC/18 mA, SELV |
| Display |
6 LEDs zur Anzeige des Zustandes am Eingang |
| Suitable for SELV |
Yes, if all inputs are connected with SELV |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 730-1 |
