Motion detector (PIR) for ceiling mounting indoors, Circular detection area 360°, Ø 12 m (113 m²) at 3 m mounting height.
Function description
- Mixed light measurement
- Integrated temperature sensor
- Extension of the Detection areas through parallel connection
- Adjustable sensitivity
- Surface mounting possible with accessories (THE9080019, THE9080020, THE9080021)

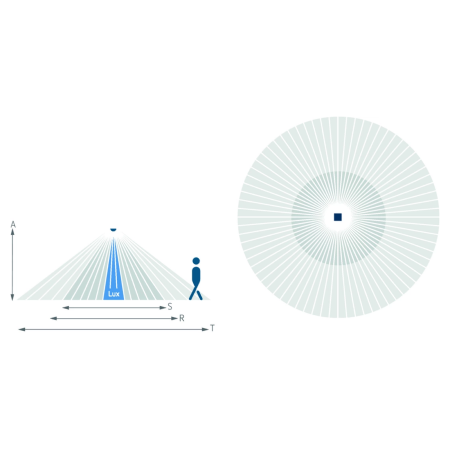

Detection area
| Mounting height (A) |
Sitting (S) |
Walking (T) |
Frontal Walking(R) |
| 2,5 m |
13 m² | 4 m |
78 m² | 10 m |
28 m² | 6 m |
| 3 m |
20 m² | 5 m |
113 m² | 12 m |
28 m² | 6 m |
| 3,5 m |
20 m² | 5 m |
78 m² | 10 m |
28 m² | 6 m |
