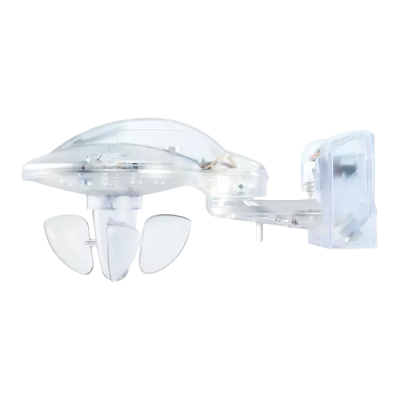

Combination sensor/weather station LUXORliving For detecting wind, rain, brightness and temperature.
Function description
- Rain sensor with heating
- For fully automatic blind and sun shading control
- Recording and evaluation directly in the device
- Sun protection for up to four façades thanks to 3 integrated brightness sensors
- Display of weather data e.g. with LUXORliving app "LUXORplay"
Technical data
|
| Operating voltage |
15 - 34 V DC |
| Operating voltage KNX |
Busspannung, ≤10 mA |
| Stand-by consumption |
< |
| Installation type |
Wall installation |
| Measuring range brightness
|
1 - 100000 lx |
| Setting range temperature |
-30°C ... 60°C |
| Ambient temperature |
-20°C ... 55°C |
| Type of protection |
IP 44 |
| Protection class |
III |
