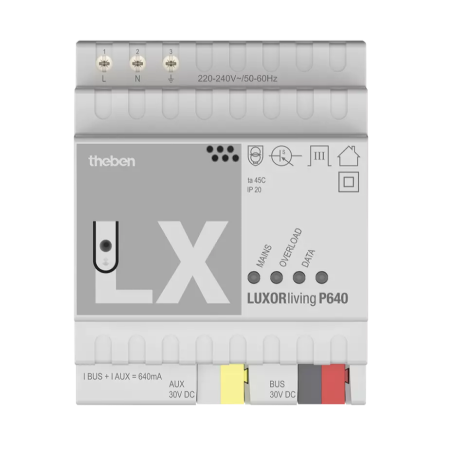

Power-supplying and monitoring of the KNX system voltage, 640 mA Power Supply with 30 V DC auxiliary supply and manual reset key.
Function description
- 640 mA supply voltage LUXORliving
- 30 V DC auxiliary supply
- Power-supplying and monitoring of the system voltage
Technical data
|
| Operating voltage |
230 – 240 V AC |
| Stand-by consumption |
<0.8 W |
| Width |
4 modules |
| Installation type |
DIN rail |
| Mains failure bridging time |
min.100 ms |
| Protection class |
II according to EN 60 730-1 |
| Type of protection |
IP 20 |
