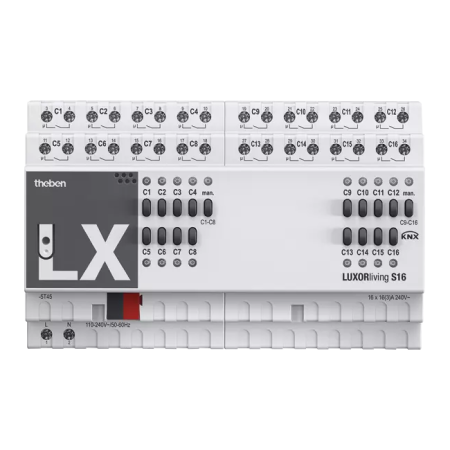

Theben S16, 16-way switching actuator LUXORliving with manual control and LED switching status display for each channel. For switching Incandescent/halogen lamps, Energy saving lamps and LED lamps.
Function description
- 16-way switching actuator LUXORliving
- LED switching status display for each channel
- Manual operation on device
- Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
Technical data
|
| Operating voltage KNX |
<4 mA |
| Operating voltage |
110 – 240 V AC |
| Stand-by consumption |
<0.3 W |
| Installation type |
DIN rail |
| Width |
8 modules |
| Number of channels |
16 |
| Type of contact |
NO contact, 16 A, 3 A |
| Incandescent/halogen lamp load |
2000 W |
| Halogen lamp load |
2000 W |
| Fluorescent lamp load (conventional) parallel-corrected |
1300 W (140 µF) |
| Fluorescent lamp load (conventional) not corrected |
2000 VA |
| Fluorescent lamp load (electronic ballast) |
1200 W |
| Energy saving lamps |
300 W |
| LED lamp < 2 W |
55 W |
| LED lamp 2-8 W |
600 W |
| LED lamp > 8 W |
600 W |
| Inrush current |
max. 800 A / 200 µs |
| Type of protection |
IP 20 |
| Protection class |
II |
