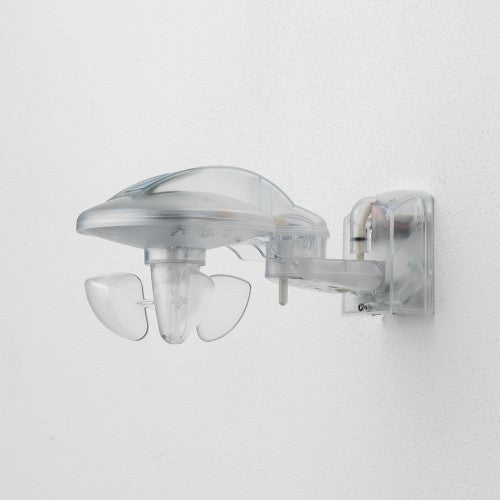

The Theben Meteodata 140 basic KNX is a self-contained outdoor weather station for measuring wind, brightness and temperature. Allowing fully automatic blinds and sun protection control.
Function description
- Self contained outdoor weather station
- For measuring wind, brightness and temperature
- For fully automatic blinds and sun protection control
- Measurement and evaluation directly on device
- Sun protection for up to three facades via 3 integrated brightness sensors
- 4 additional threshold channels for connection of external KNX sensors
- 6 logic channels
- Display of weather data e.g. with VARIA 826 KNX multi-function display
Technical data
|
| Operating voltage KNX |
Bus voltage, ≤10 mA |
| Installation type |
Wall installation |
| Measuring range brightness
|
1 – 100000 lx |
| Setting range temperature |
-30°C ... 60°C |
| Measuring range wind speed |
2 – 30 m/s |
| Ambient temperature |
-20°C ... 55°C |
| Type of protection |
IP 44 |
| Protection class |
III |
