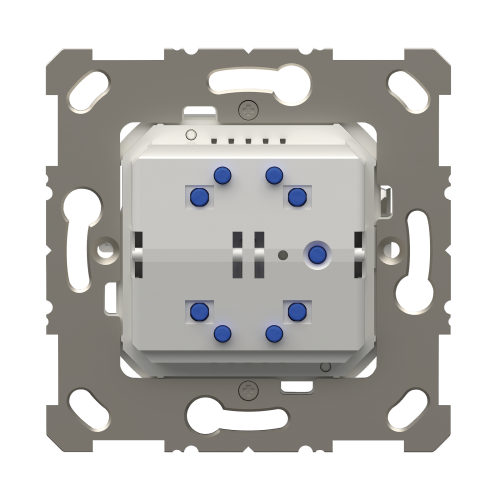

Flush-mounted dimming actuator RF with 4 touch points, KNX RF, Data Secure.
Function description
- 4 touch points
- Can be used universally in many 55 mm switch programs
- Quick and easy conversion of conventional installations
- 1-way or 2-way rockers required as separate accessories, article numbers THE9080026, THE9080027)
- Secure commissioning and communication through support of KNX Data Secure
Technical data
|
| Operating voltage KNX |
Busspannung |
| Operating voltage |
230 V AC - 240 V AC, 50 Hz - 60 Hz |
| Frequency |
50 - 60 Hz |
| Installation type |
Flush-mounted |
| Type of connection |
Screw terminals |
| Number of channels |
1 |
| Type of contact |
10 A |
| LED lamp 2-8 W |
250 W |
| LED lamp > 8 W |
250 W |
| Protection class |
II |
