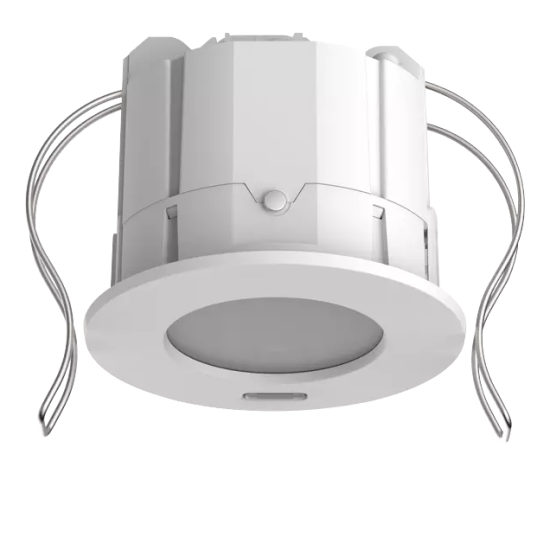

Passive infra-red presence sensor for ceiling installation in false ceilings, DALI-2 certified

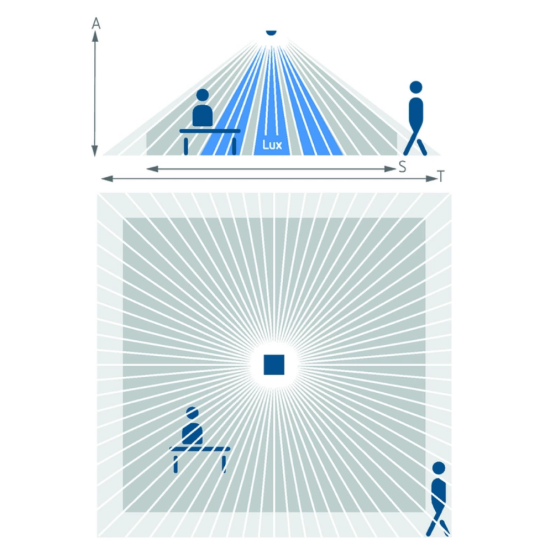

Square detection area 360°, 7 x 7 m, (49 m2) at mounting height 3 m
This device provides information about presence and brightness in the form of a DALI telegram in line with IEC 62386 Part 303/304
2 instances for presence - detection zone standard/reduced
Optics can be tilted to adjust the detection area
3 mixed light measurements
4 instances for brightness - interior/centre/window/integral
Easy to calibrate brightness measurement
Test mode for checking function and detection area
Configurable detection sensitivity
Can be configured via DALI bus or remote control
The «theSenda S» or «theSenda B» user remote controls can be used to dim or switch the lamps, to control the blinds, or to execute additional functions via the higher-level control
Flat design with interchangeable bezel frame in different colours
