For higher lamp loads the 4-way C load switching actuator FIX1 also comes with current recognition. Manual control and LED switching status display for each channel.
Function description
- 4-way C load switching actuator FIX1
- With current recognition
- For higher lamp loads
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
- Adjustable characteristics: e.g. switching, delayed switching, pulse function
- Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
- Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
- Logical links: e.g. lock, AND, release, OR
Technical data
|
| Operating voltage KNX |
Bus voltage, ≤4 mA |
| Operating voltage |
110 – 240 V AC 50 – 60 Hz |
| Frequency |
50 – 60 Hz |
| Stand-by consumption |
~1.3 W |
| Installation type |
DIN rail |
| Width |
4 modules |

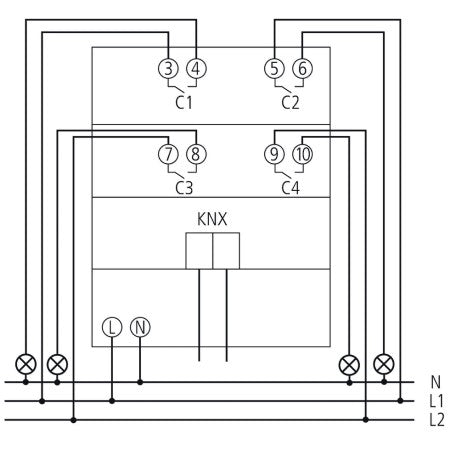

| Type of connection |
Terminal screws | Bus connection: KNX bus terminal |
| Max. cable cross section |
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm² |
| Number of channels |
4 |
| Type of contact |
NO contact, 16 A, 10 A |
| Opening width |
< 3 mm |
| Resistive load |
3680 W |
| Capacitive load |
200 µF |
| Incandescent/halogen lamp load |
2600 W |
| Fluorescent lamp load (conventional) parallel-corrected |
2000 W (200 µF) |
| Fluorescent lamp load (electronic ballast) |
1650 W |
| Energy saving lamps |
410 W |
| LED lamp < 2 W |
75 W |
| LED lamp 2-8 W |
850 W |
| LED lamp > 8 W |
850 W |
| Inrush current |
max. 1500 A / 200 µs |
| Voltage output |
240 V AC |
| Switching output |
Potential-free |
| Switching of various phases |
Possible |
| Suitable for SELV |
Yes if all channels switch at SELV |
| Accuracy current measurement |
I > 1 A: ± 8 % of measured value; I < 1 A: ± 100 mA; lowest measurable value: 150 mA |
| C load |
Yes |
| Type |
Module FIX1 |
| Ambient temperature |
-5°C ... 45°C |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 669 |
