The 8-way switching actuator MIX2 can be upgraded to a maximum of 24 channels using extension modules, Each channel has LED Status and individual control. Manual operation on device even without bus connection.
Function description
- 8-way switching actuator MIX2
- Extension module MIX2
- For upgrading to maximum of 24 channels
- Up to two extension modules MIX or MIX2 can be connected to one base module
- Device and KNX bus module can be swapped independently of each other
- Removable KNX bus module enables devices to be changed without reprogramming
- Manual set-up and use of switching actuators is possible without KNX bus module
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
- Adjustable characteristics: e.g. switching, delayed switching, pulse function
- Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
- Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
- Logical links: e.g. lock, AND, release, OR

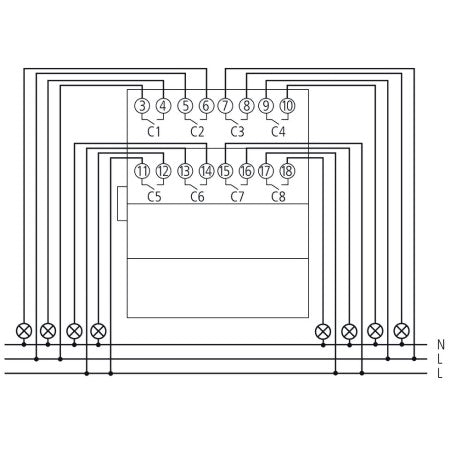

Technical data
|
| Values valid as of serial number |
1318XXXXX |
| Installation type |
DIN rail |
| Width |
4 modules |
| Type of connection |
Screw terminals |
| Max. cable cross section |
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm² |
| Number of channels |
8 |
| Type of contact |
NO contact, 16 A, 3 A |
| Opening width |
< 3 mm |
| Resistive load |
3680 W |
| Incandescent/halogen lamp load |
2000 W |
| Fluorescent lamp load (conventional) parallel-corrected |
1300 W (140 µF) |
| Fluorescent lamp load (conventional) not corrected |
2000 VA |
| Fluorescent lamp load (electronic ballast) |
1200 W |
| Energy saving lamps |
300 W |
| LED lamp < 2 W |
55 W |
| LED lamp 2-8 W |
600 W |
| LED lamp > 8 W |
600 W |
| Inrush current |
max. 800 A / 200 µs |
| Voltage output |
240 V AC |
| Switching output |
Potential-free |
| Switching of various phases |
Possible |
| Suitable for SELV |
Yes if all channels switch at SELV |
| C load |
|
| Type |
Extension module |
| Ambient temperature |
-5°C ... 45°C |
| Type of protection |
IP 20 |
| Protection class |
II |
