Flexible channel function selection as switching actuator or for controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps. 8-way switching or 4-way blind actuator MIX2.
Function description
- 8-way switching or 4-way blind actuator MIX2
- Base module MIX2
- Can be upgraded to maximum of 24 channels
- Flexible channel function selection as switching actuator or for controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
- Up to two extension modules MIX or MIX2 can be connected to one base module
- Device and KNX bus module can be swapped independently of each other
- Removable KNX bus module enables devices to be changed without reprogramming
- Manual set-up and use of actuator is possible without KNX bus module
- LED switching status display for each channel
- Manual operation on device (even without bus connection)

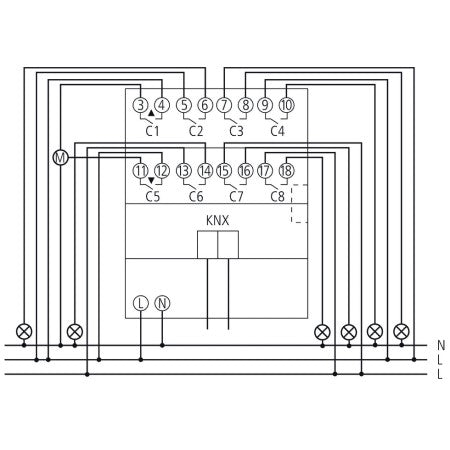

Technical data
|
| Operating voltage KNX |
Bus voltage, ≤4 mA |
| Operating voltage |
110 – 240 V AC 50 – 60 Hz |
| Frequency |
50 – 60 Hz |
| Stand-by consumption |
~0.3 W |
| Capacity loss max. |
6.4 W |
| Installation type |
DIN rail |
| Width |
4 modules |
| Type of connection |
Terminal screws | Bus connection: KNX bus terminal |
| Max. cable cross section |
Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm² |
| Number of channels |
8 |
| Type of contact |
NO contact, 16 A, 3 A |
| Opening width |
< 3 mm |
| Incandescent/halogen lamp load |
2000 W |
| Fluorescent lamp load (conventional) parallel-corrected |
1300 W (140 µF) |
| Fluorescent lamp load (conventional) not corrected |
2000 VA |
| Fluorescent lamp load (electronic ballast) |
1200 W |
| Energy saving lamps |
300 W |
| LED lamp < 2 W |
55 W |
| LED lamp 2-8 W |
600 W |
| LED lamp > 8 W |
600 W |
| Inrush current |
max. 800 A / 200 µs |
| Voltage output |
240 V AC |
| Switching output |
Potential-free |
| Switching of various phases |
Possible |
| Suitable for SELV |
Yes if all channels switch at SELV |
| C load |
|
| Type |
Base module |
| Ambient temperature |
-5°C ... 45°C |
| Type of protection |
IP 20 |
| Protection class |
II according to EN 60 669 |
