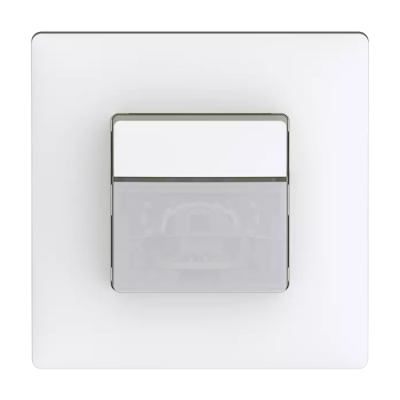

theMura P180 2.20 KNX UP WH

Function description

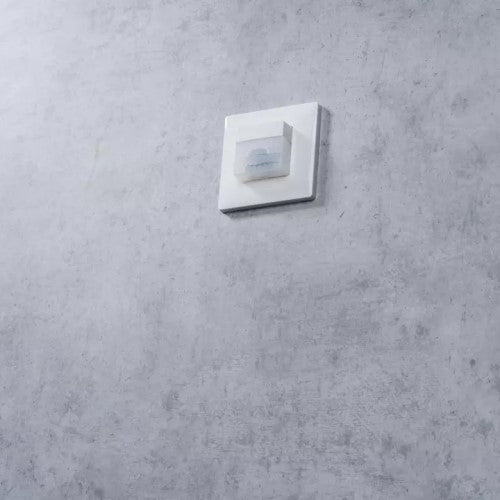

• Passive infrared presence detector for wall mounting flush-mounted

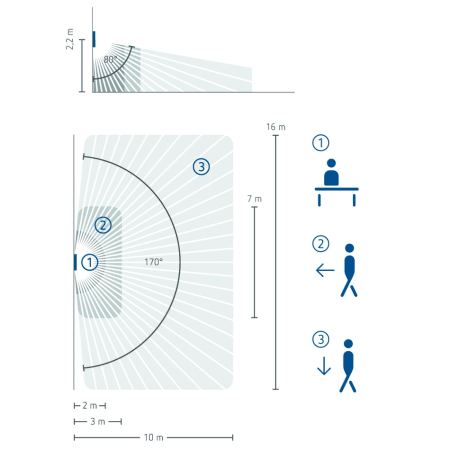

• Rectangular detection area 170°, 16 x 10 m (160 m²) at 2.2 m mounting height
• 2 channels light and 2 channels HVAC
• Switching or constant light control with stand-by functionality (orientation light)
• Dimmable lighting in switching mode with and without daylight influence
• Simple adjustment of brightness measurement
• Short-time presence
• Selectable control speed
• Aura function
• Scene functionality
• Integrated orientation light (white)
• Integrated temperature sensor
• Acoustic function
• 2 binary inputs
• 6 logic channels (AND, OR, XOR)
• KNX Data-Secure
• Operation as fully or semi-automatic possible
• Integrated, freely parameterisable push-button (can be deactivated)
• Manual override via external KNX push-button possible
• One directional brightness measurement (mixed light measurement)
• Teach-in function
• Locking functions
• HVAC channel without brightness influence
• Switch-on delay and follow-up time of HVAC channel adjustable
• Extension of the detection range by master/slave or master/master switching
• Detection sensitivity adjustable
• Test mode for checking function and detection range
• Settings via ETS software (full range of functions)
• With Theben cover frame

Technical data
