Description
Function description

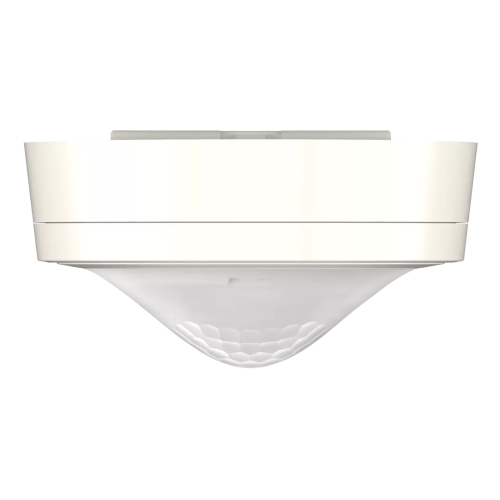

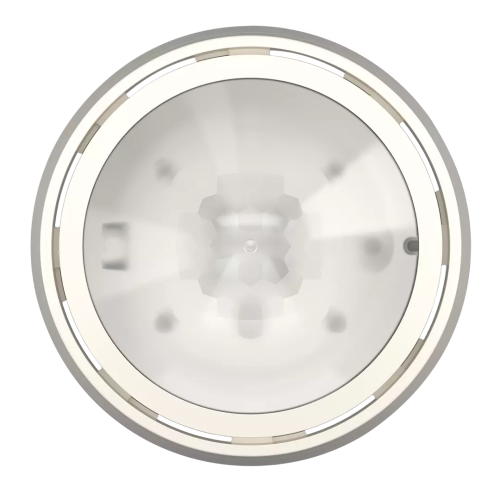

- Multi-sensor KNX
- Consisting of passive infra-red presence detector KNX and air quality sensor KNX (= 2 bus participants)
- Functions air quality sensor:
- Measures CO2 level, relative humidity, temperature and barometric air pressure
- Three independent, configurable thresholds for the CO2 level and relative humidity
- Integrated individual room thermostat
- 4 binary inputs
- Functions presence detector:

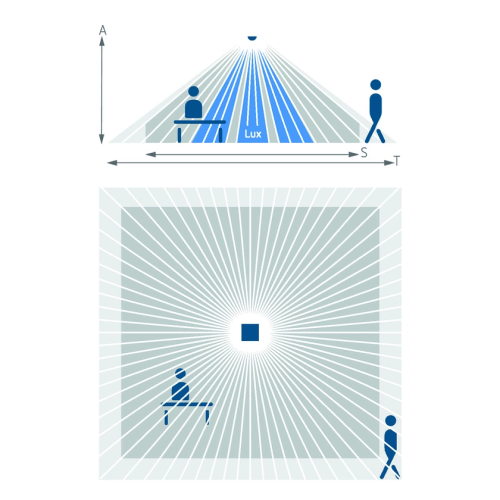

- Square detection area 360°, 9 x 9 m, (81 m2) at mounting height 3 m
- 3 channels light and 2 channels presence
- 2 channel light C1, C2 with 2 light measurements and additional lighting channel C3 without brightness factor
- 2 presence channels can be set individually
- Adaptable 3 channel light measurement
- Mixed light measurement suitable for LEDs, fluorescent lamps (FL/PL/ESL) and halogen/incandescent lamps
- Can be used as fully or semi-automatic, switchable
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
- Brightness switching value or set point value can be set in lux using parameters, on the device itself or via remote control
- Teaching in of the brightness switching value or the set point value
- Room correction factor setting for brightness measurement calibration
- Light time delay can be set using parameters, on the device itself or via remote control
- Switch on delay and time delay for presence can be set
- Detection sensitivity can be set
- Self-learning time delay
- Reduced time delay in the event of a shorter stay in the room (short presence)
- Scenario functions
- Extremely easy setting of energy saving characteristics with the new "eco plus" function
- Test mode for checking function and detection range
- Parallel switching of several detectors in Master/Slave or Master/Master possible
- User remote control and management-remote control (optional)
- Room monitoring
Technical data
Installation height | 2 – 10 m |
Minimum height | > 1,7 m |
Measuring range brightness | 5 – 3000 lx |
Detection angle | 360° |

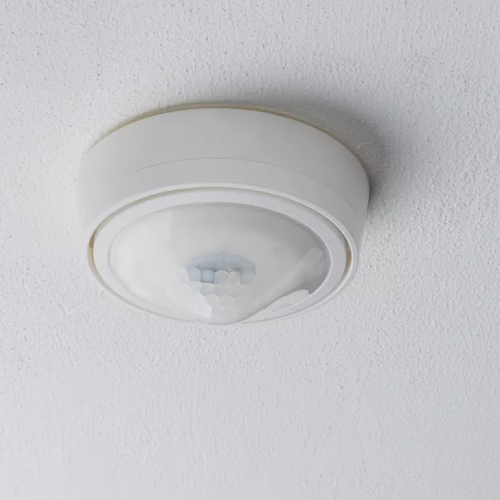

Installation type | Ceiling installation |
Light switch-off delay | 30 s – 60 min/inaktiv/ein |
Lamps | Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDs |
Light measurement | Mixed light measurement |
Presence switch-off delay | 10 s - 120 min |
Switch-on delay presence | 10 s – 30 min / inactive |
Ambient temperature | 5°C ... 40°C |
Detection range | 81 m² (9,0 x 9,0 m) |
Colour | White |
Measuring range CO2 | 300 – 5000 ppm |
Setting range temperature | -5°C ... 45°C |
Measuring range air pressure | 30000 – 110000 Pa |
Measuring range humidity | 1 – 100 % rH |
Interface extension max. | 30 m |
Type of protection | IP 20 |
