thePrema S360 KNX

The Theben thePrema S360 KNX has 2 channel light, 1 light measurement and 2 presence channels with a square detection range of 360° (up to 64 m²) for safe and easy planning.

Function description

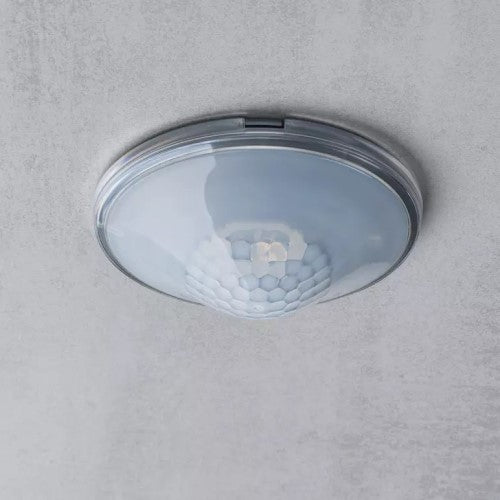

• Passive infra-red presence detector KNX for flush-mounted ceiling installation
• Square detection area 360°, 7 x 7 m, (49 m²) at mounting height 3 m
• 2 channels light and 2 channels presence
• 2 channel light C1, C2 with 1 light measurement
• 2 presence channels C4, C5 can be set individually
• Adaptable 1 channel light measurement
• Mixed light measurement suitable for LEDs, fluorescent lamps (FL/PL/ESL) and halogen/incandescent lamps
• Can be used as fully or semi-automatic, switchable
• Switch or constant light control mode with stand-by function
• Dimmable lighting in switch mode with stand-by function
• Brightness switching value or set point value can be set in lux using parameters, on the device itself or via remote control
• Teaching in of the brightness switching value or the set point value
• Room correction factor setting for ­brightness measurement calibration
• Light time delay can be set using parameters, on the device itself or via remote control
• Switch on delay and time delay ­for presence can be set
• Detection sensitivity can be set
• Self-learning time delay
• Reduced time delay in the event of a shorter stay in the room (short presence)
• Scenario functions
• Extremely easy setting of energy saving characteristics with the new "eco plus" function
• Test mode for checking function and detection range
• Parallel switching of several detectors in Master/Slave or Master/Master possible
• User remote control and management-remote control (optional)
• Room monitoring
• * According to warranty terms and conditions, see www.theben.de/en/guarantee
