The DALI-2 Room Solution is a DALI-2 single room solution that handles all aspects of lighting control
Compared to DALI presence detectors, the DALI-2 Room Solution offers new functionalities such as HCL function, TW/RGB functionality, time-controlled functions and others
For the single room solution, all key components (presence detector, switching actuator, push-button interface) and the app for commissioning are available from a single source
Technical data
Operating voltage
230 V AC
Frequency
50 Hz

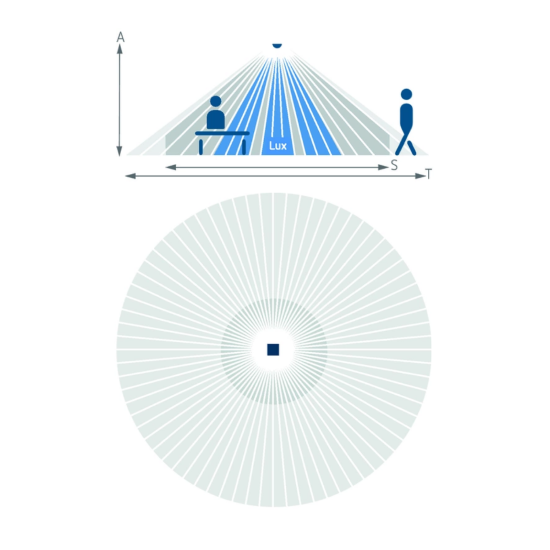

Installation height
2 - 10 m
Maximum height
15 m
Minimum height
1.7 m
Installation type
Ceiling installation
Power consumption
<0.7 W (without DALI device); < 1,6 W (with DALI output 150 mA)
Light measurement
Mixed light measurement
Setting range brightness
10 - 3000 lx
Light switch-off delay
10 s - 60 min
Stand-by time light
0 s - 180 min / on
Stand-by brightness
1 - 75 %
Lamp types
Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
