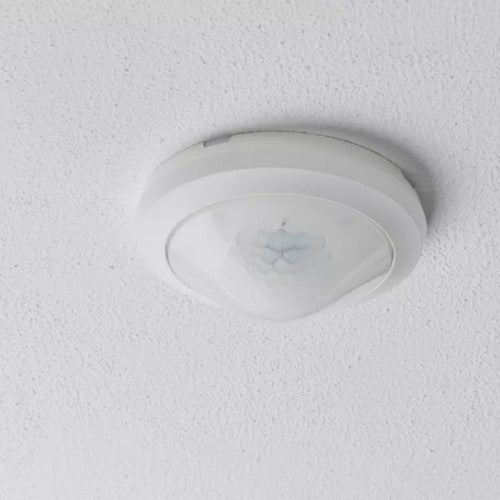

The Theben theRonda P360 KNX has 2 channel light and 2 channel presence and 1 light measurement with a round detection area 360°, up to Ø 24 m (452 m2).
Function description
- Passive infra-red presence detector KNX for flush-mounted ceiling installation

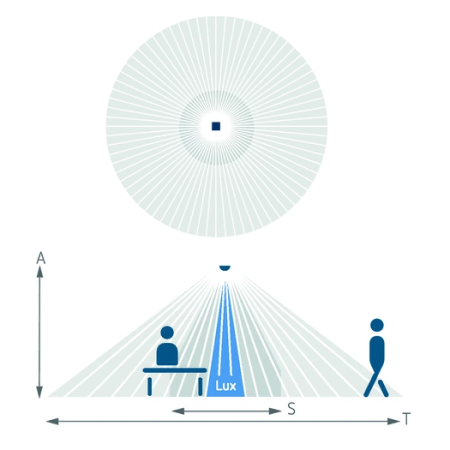

- Circular detection area 360°,Ø 24 m, (452 m2) at mounting height 3 m
- 2 channels light and 2 channels presence
- 2 channel light C1, C2 with 1 light measurement
- 2 presence channels can be parametrized individually
- Adaptable 1 channel light measurement
- Mixed light measurement suitable for LEDs, fluorescent lamps (FL/PL/ESL) and halogen/incandescent lamps
- Can be used as fully or semi-automatic, switchable
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
- Brightness switching value or set point value can be set in lux using parameters, on the device itself or via remote control
- Teaching in of the brightness switching value or the set point value
- Room correction factor setting for brightness measurement calibration
- Light time delay can be set using parameters, on the device itself or via remote control
- Switch on delay and time delay for presence can be set
- Detection sensitivity can be set
- Reduced time delay in the event of a shorter stay in the room (short presence)
- Scenario functions
- Test mode for checking function and detection range
- Sensitivity adjustable
- Detection area can be limited using cover clip
- Manual override using telegram or remote control
- Parallel switching of several detectors in Master/Slave or Master/Master possible
- Ceiling installation in flush-mounted socket
- Ceiling installation also possible with surface-mounted frame
Technical data
|
| Installation height |
2 – 10 m |
| Maximum height |
15 m |
| Minimum height |
> 1,7 m |
| Measuring range brightness
|
30 – 3000 lx |
| Detection angle |
360° |
| Type of connection |
KNX bus terminal |
| Installation type |
Ceiling installation |
| Light switch-off delay |
30 s – 60 min |
| Lamps |
Energy saving lamps, fluorescent lamps, Incandescent/halogen lamps, LEDs |
| Light measurement |
Mixed light measurement |
| Presence switch-off delay |
10 s - 120 min |
| Switch-on delay presence |
10 s – 30 min / inactive |
| Ambient temperature |
-15°C ... 50°C |
| Detection range |
452 m² (ø 24 m | 360°) |
| Colour |
White |
| Type of protection |
IP 54 (when fitted) |
