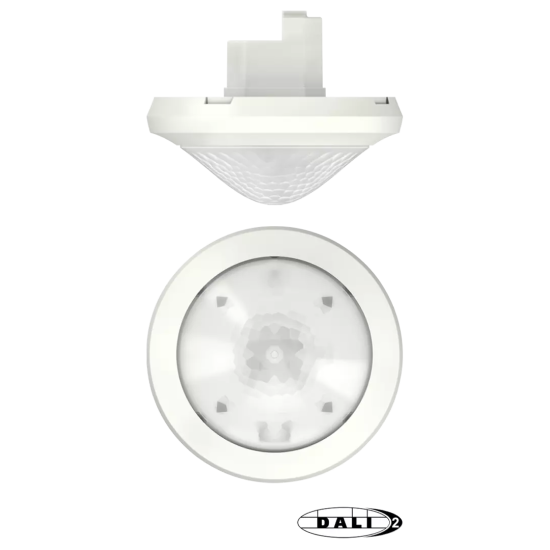

Passive infra-red presence sensor for flush-mounted ceiling installation, DALI-2 certified

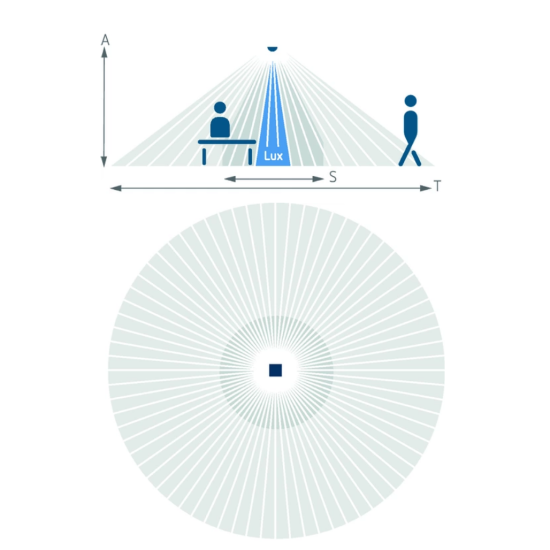

Circular detection area 360°, Ø 8 m, (50 m2) at mounting height 3 m
This device provides information about presence and brightness in the form of a DALI telegram in line with IEC 62386 Part 303/304
Area restriction with cover clips (optional)
1 instance for presence
Mixed light measurement
1 instance for brightness
Easy to calibrate brightness measurement
Test mode for checking function and detection area
Configurable detection sensitivity
Can be configured via DALI bus or remote control
The „theSenda S“ or „theSenda B“ user remote controls can be used to dim or switch the lamps, to control the blinds, or to execute additional functions via the higher-level control

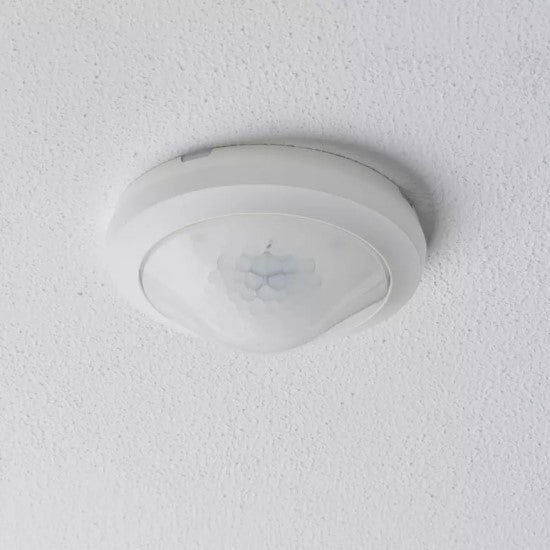

Ceiling installation in flush-mounted box
Surface-mounted installation possible with surface frame 110A (optional)
Area restriction with cover clips (optional)
„theSenda B“ app remote control (optional) and corresponding „theSenda Plug“ app (for iOS/Android)
A Multi-Master Application Controller is required for commissioning/control and configuration. According to IEC 62386, this must include parts 101/103 and optionally 301/303/304
