theRonda S360 KNX UP WH

Function description

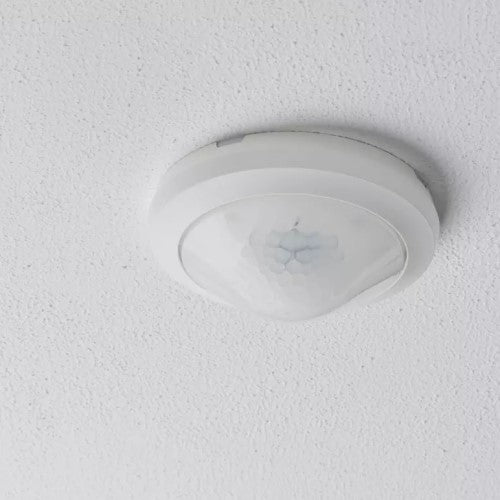

• KNX Passive infrared presence detector for ceiling installation
• Circular detection area 360°, up to Ø 8 m (50 m²) at 3 m installation height
• Automatic presence- and brightnessdependent control for lighting and HVAC
• Mixed light measurement suitable for fluorescent (FL/PL/ESL), halogen/incandescent lamps and LEDs
• 2 light channels C1, C2
• Switching operation or constant light control with standby function (orientation light)
• Switching mode with dimmable lighting
• Choice of fully or semi-automatic
• Brightness switching value or set point value can be set in lux by using parameters, the object or via remote control
• Teach-in of the brightness switching value or the set point value
• Reduction of time delay when present briefly (short-term presence)
• Manual override by telegram or remote control
• 2 presence channels C4, C5, individually configurable
• Switch-on delay and time delay configurable
• Setting the room correction factor for brightness measurement comparison
• Adjustable sensitivity
• Test mode for checking function and detection area
• Scenes
• Parallel switching of multiple presence detectors (Master/Slave or Master/Master)
• Ceiling installation in flush-mounted socket
• Ceiling installation also possible with surface-mounted frame
• User remote control «theSenda S» (option)
• Management remote control «theSenda B» (option)
• Installation remote control «theSenda P» (option)
