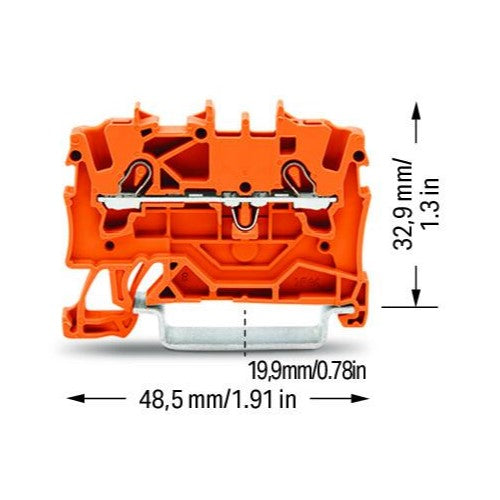

2-conductor through terminal block 1.5 mm² - Orange (100PK)

WagoSKU: 2001-1202

Price:
Sale price£64.00

VAT calculated at checkout

Stock:
Only 3 units left
 More payment options

Description

Connection data
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Number of jumper slots 2
Connection 1
Connection technology Push-in CAGE CLAMP®
Actuation type Push-in
Operating tool
Connectable conductor materials Copper
Nominal cross-section 1.5 mm²
Solid conductor 0.25 … 2.5 mm² / 22 … 14 AWG
Solid conductor; push-in termination 0.75 … 2.5 mm² / 18 … 14 AWG
Fine-stranded conductor 0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with insulated ferrule 0.25 … 1.5 mm² / 22 … 16 AWG
Fine-stranded conductor; with ferrule; push-in termination 0.75 … 1.5 mm² / 18 … 16 AWG
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length 9 … 11 mm / 0.35 … 0.43 inch
Wiring direction Front-entry wiring

Nominal Cross Section: 1.5 mm²
