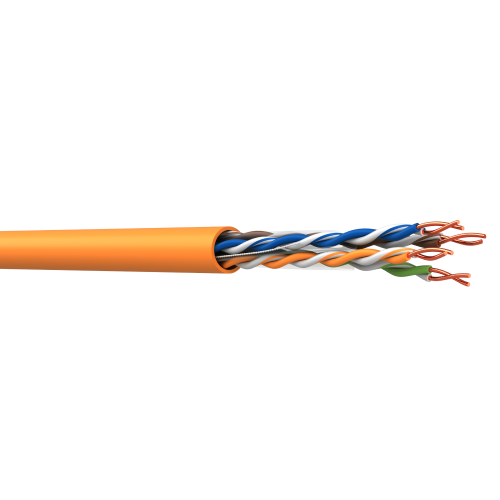

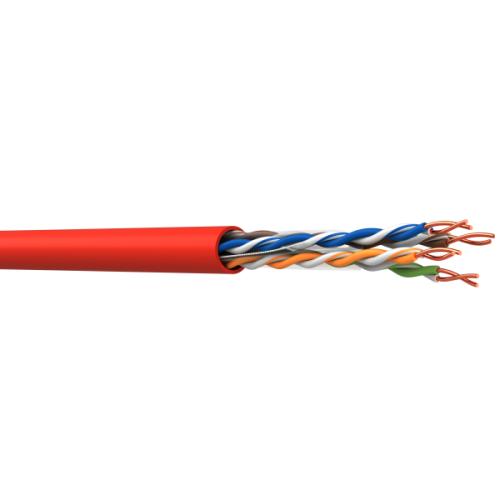

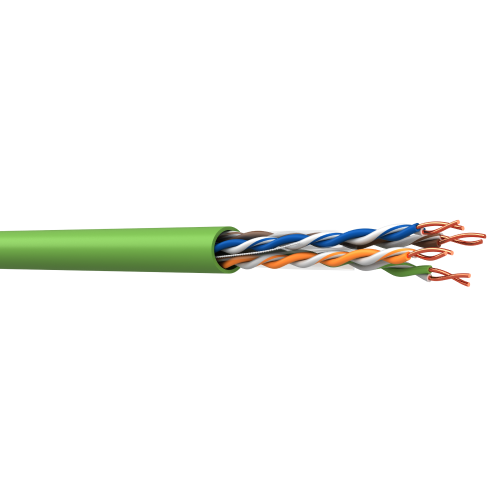

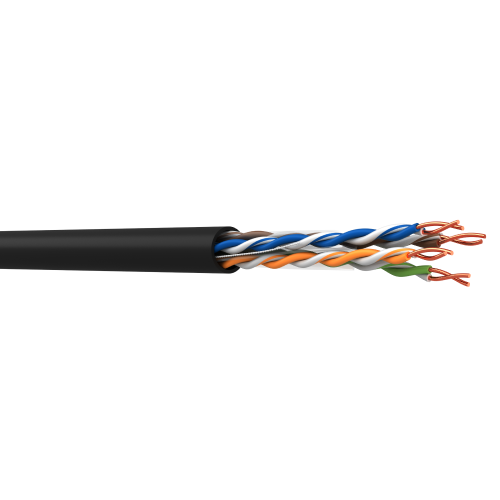

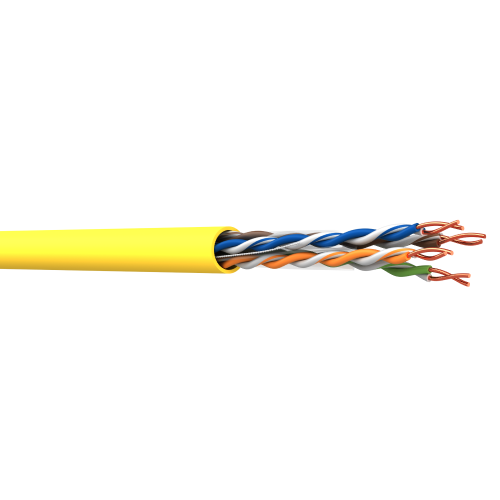

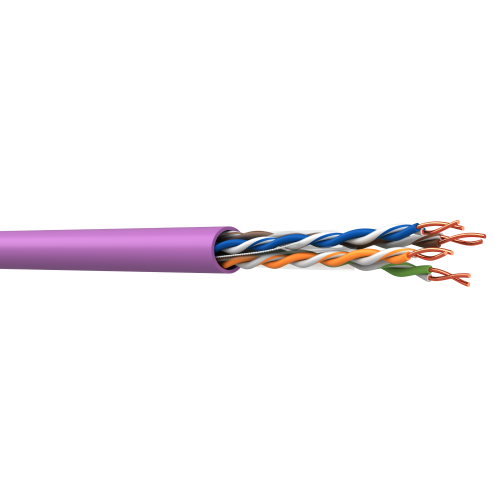

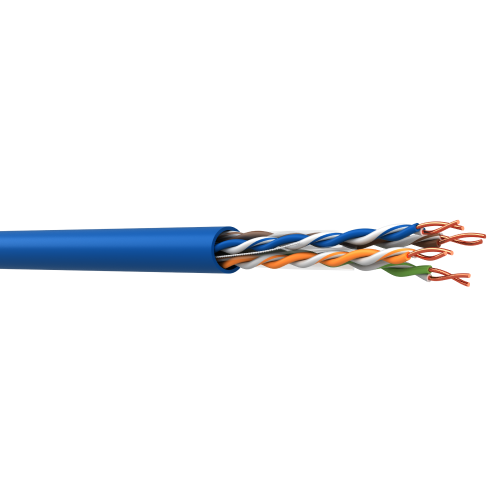

Designed for efficient, large-scale deployments, the WEBNET Category 6 U/UTP cable is tested and certified by the HDBaseT Alliance. This high-performance, unscreened cable features four twisted pairs within a durable, Low Smoke Non-Halogen (LSNH) sheath, ensuring safety and reliability in a wide range of installations.

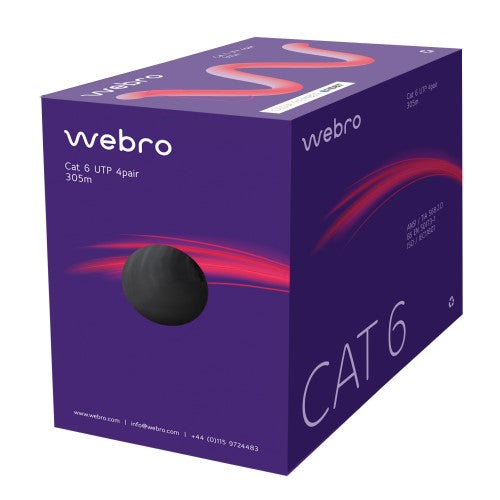

Supplied in convenient 305-metre pull boxes, this format ensures easy storage, protects the cable from tangling, and allows for smooth, uninterrupted pulls on-site, significantly improving installation efficiency. The cable is available in multiple sheath colours for simple circuit identification and organised cable management.
Key Features:
-
HDBaseT Alliance certified for guaranteed high-performance AV and data transmission.
-
Low Smoke Non-Halogen (LSNH) outer sheath for enhanced safety.
-
Packaged in easy-to-use 305m pull boxes for efficient installation.
-
Available in multiple colours for easy circuit identification.
| Conductor Material |
Bare Copper |
| Number of Pairs |
4 |
| Insulation Material |
HDPE |
| Screening Type |
U/UTP |
| Sheath Material |
Low Smoke Non-Halogen |
| Sheath Colours |
Violet / White / Black / Green / Blue
Red / Yellow / Orange
|
| Flame Retardancy |
BS EN 60332-1-2 |
| Low Smoke Emissions |
BS EN 61034-2 |
| Halogen Gas Emissions |
BS EN 60754-1, BS EN 60754-2 |
| Certifications & Approvals |
HDBaseT |
| CPR Classification |
Eca |
