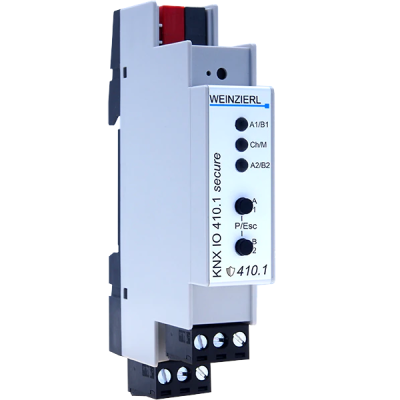

The KNX IO 410.1 secure is a compact binary input with 4 inputs.
The application offers extensive functions for switching, dimming, shutter, valuator, scene and color control as well as an operation time and impulse counter.
The inputs can be connected to conventional switches with an external voltage of 12 to 230 V.
Two push buttons and three LEDs allow a local operation and a visualization of the device state.
In addition, the device contains 16 independent logic or time functions. The device supports KNX Data Security.
Technical data
Mechanical data
- Housing: plastic
- DIN rail mounted device, width: 1 modules (18 mm)
- Weigth: approx. 50 g
User Interface
- 2 buttons and 3 LEDs (multicolor)
- KNX programming button with LED (red)
KNX
- Compatible with ETS 5.7 (or higher)
- Medium TP
- KNX Security
Connectors
- Connector for KNX Bus (red / black)
- Pluggable screw connector (3 poles) for binary input channel 1 and 2
- Pluggable screw connector (3 poles) for binary input channel 3 and 4
Input channels (Binary in)
- Voltage: 12..230 V=~
- Current: < 1 mA
