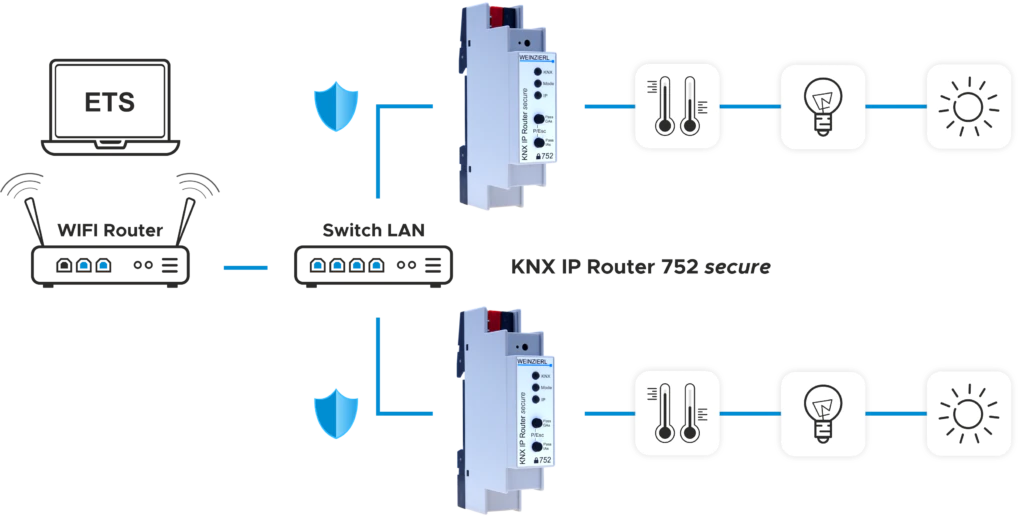

The KNX IP Router 752 secure enables the secure forwarding (routing) of telegrams between different lines over a LAN (IP, Ethernet) as a fast backbone. As a secure router, the device enables the connection of unsecured communications on a KNX TP line with a secure IP backbone. The KNX IP Router 752 secure has an extended filter table for main group 0..31 and can cache up to 150 telegrams.
The device also serves as a secure interface between IP (Ethernet) and KNX and can be used as a programming interface for the ETS®. As a KNX Secure Interface (tunneling), the device prevents unauthorized access to the system. The connection between PC and interface is encrypted.
With the KNX IP Router 752 secure, the KNX bus can be accessed from any point in the LAN. Encryption also enables secure programming over the Internet. The security option can be activated or deactivated in the ETS.
The device is characterized by a compact design with a width of only 1 HP (18 mm) and is powered by the KNX bus.
The buttons and LEDs on the device allow a local diagnosis of the current operating status and possible communication errors.
Technical data
Mechanical data
- Housing: plastic
- DIN rail mounted device
- Width: 1 TE (18 mm)
Controls and indicators
- 2 buttons and 3 LEDs, multicolor
- KNX programming button with LED (RD)
Ethernet
- 100BaseT (100MBit/s)
- 8 KNXnet/IP Tunneling connections
- Supported internet protocols ARP, ICMP,
IGMP, UDP/IP, TCP/IP, DHCP and Auto IP
KNX
- Medium IP/TP
- KNXnet/IP Routing
- KNXnet/IP Tunneling
- Long Frame
- KNX Security (AES-128)
Tunneling V2, Core V2
- Up to 8 KNXnet/IP Tunneling connections simultaneously
- Extended filter table for main group 0..31
Power supply
- From KNX Bus, approx. 20 mA
Connectors
- KNX connector
- LAN RJ-45 socket
