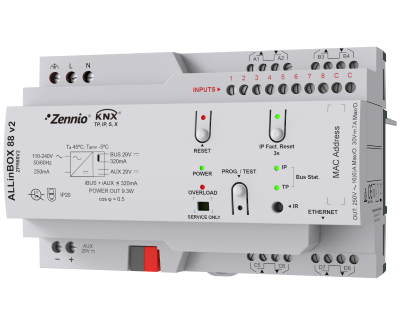

The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 320 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 8 analog/digital inputs and 8 relay outputs (16 A C-Load) in only 8 DIN rail units.
It offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2/4 pipes).
It is compatible with KNX Secure.
FEATURES
- 320 mA KNX power supply with 29 VDC auxiliary output
- 110-240 VAC 50/60 Hz power input
- Supports KNX Data Secure
- Power generation for the KNX system (with LED indicator)
- Short-circuit and overvoltage protection
- Reset button and overload status LED
- KNXnet/IP tunnelling protocol (up to 5 connections)
- Maximum APDU length of 254 bytes
- Ethernet 10/100 BaseT IP with RJ45 socket
- 2 different configurable blocks: shutter channels (up to 4), individual outputs (up
to 8) and 2/4-pipe fan coil controls (up to 1)
- Possibility of controlling blinds/shutters with 2 or 3 dry contacts
- Outputs suitable for capacitive loads, maximum 140 μF
- Manual output operation through remote control
- 8 analog/digital inputs
- Climate control for up to 4 rooms
- Output timing
- 20 logic functions
- Clock with NTP support
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 71 x 90 x 140 mm (8 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Possibility of connecting different phases in adjacent channels
- Conformity with the CE, RCM directives (marks on the right side)
