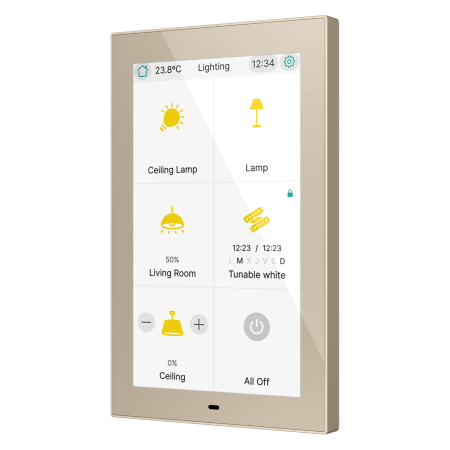

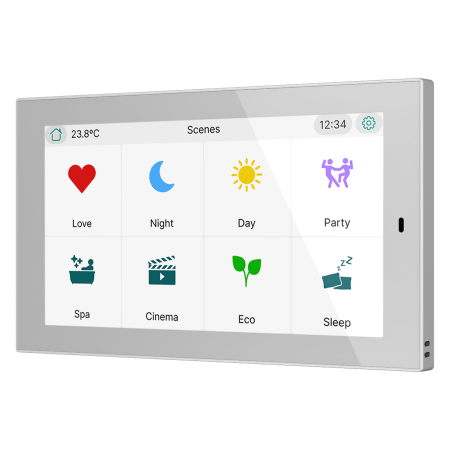

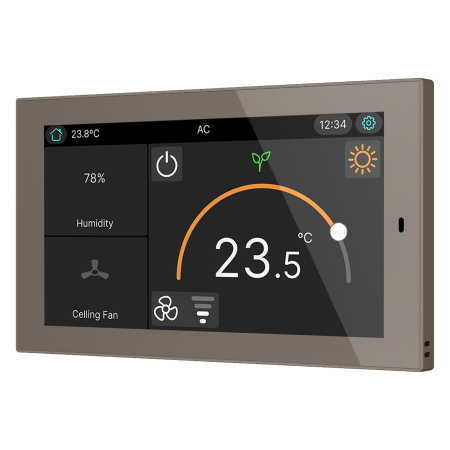

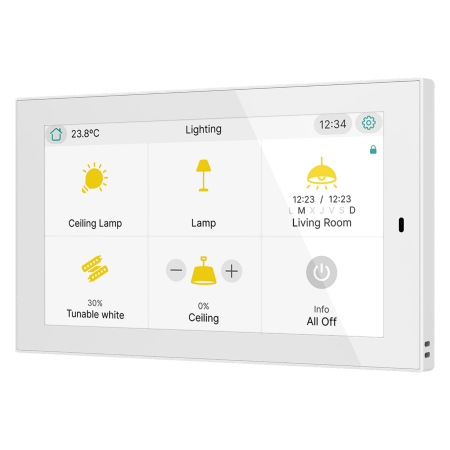

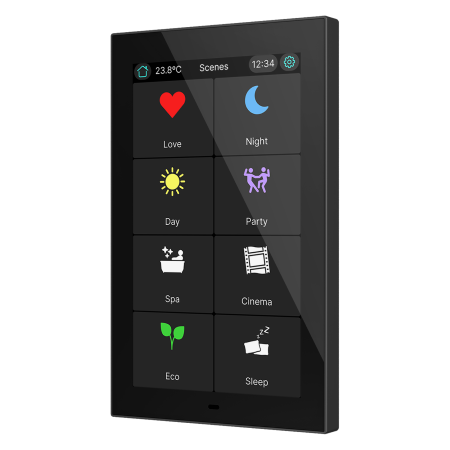

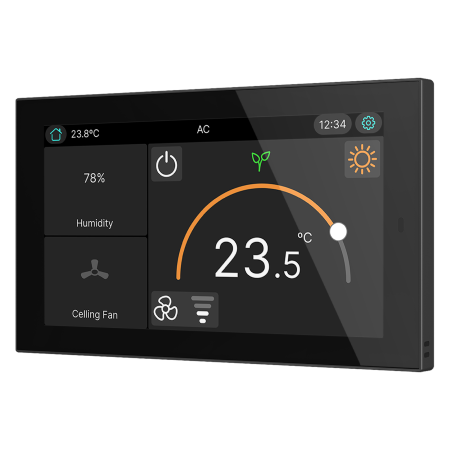

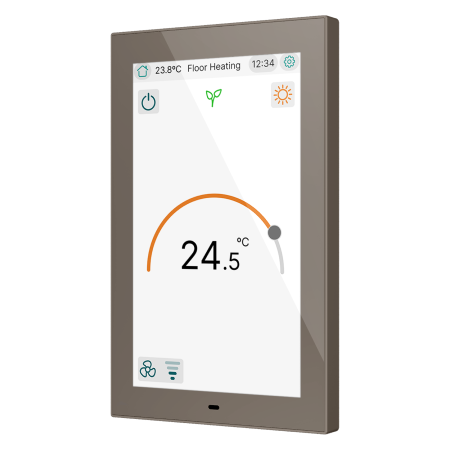

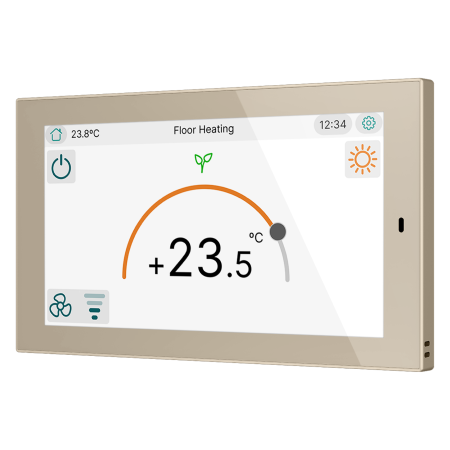

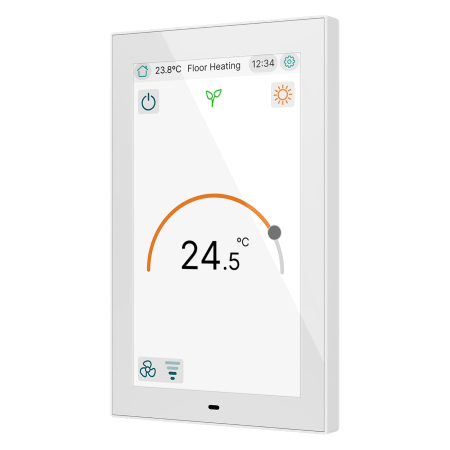

CX50 is a 5” KNX capacitive touch panel that can be installed in either horizontal or vertical orientation. Designed for room control or as a main controller for the installation, it integrates temperature and humidity sensors enabling precise ambient regulation. It allows the configuration of up to 96 functions distributed across fully customisable pages.

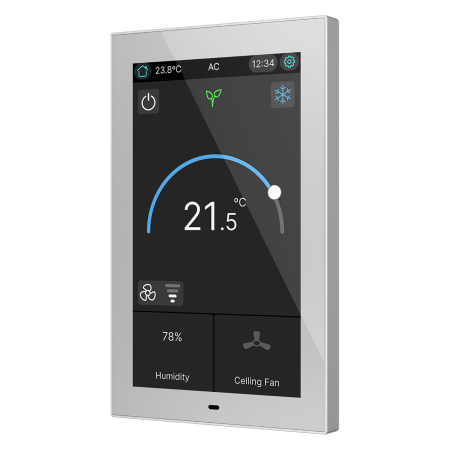

Its modern and intuitive graphical interface can be set to light or dark mode and features customisable colour icons, with the possibility of importing user-defined designs. In addition, it includes a screensaver function to display date and time or a personalised image.
It is powered exclusively through the KNX bus, enabling flexible installation without the need for an additional power supply. It incorporates 4 analogue/digital inputs for connecting temperature probes, motion sensors or binary devices. KNX Secure included.
FEATURES
- 5'' capacitive touch panel
- Up to 12 free configurable pages and one more for settings
- Built-in temperature, humidity and proximity sensors
- Clock functionality (subject to updating through devices with RTC or NTP client)
- 2 independent thermostats
- 4 analog/digital inputs
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 133.1 x 80.7 x 9.5 mm
- Flush mount on standard European, Swiss, Italian, Australian and American mounting box
- Conformity with the CE, RCM directives (marks on the back side)
