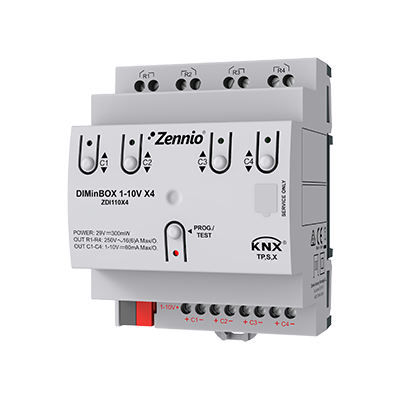

1-10 V dimming actuator for DIN-rail (4 units). It allows until 4 channels for the control of a maximum of 30 electronic ballasts or dimmable lighting drivers per channel. It includes a cut-off relay for each channel (suitable for capacitive loads, maximum 140 μF).
DIMinBOX 1-10V X4 works as sink (voltage is supplied by the ballast/driver).
It allows manual control of its outputs through the push buttons on the cover. It includes 20 independent logical functions.
It is compatible with KNX Secure.
FEATURES
- 4 x 1-10 VDC channels for the control of electronic ballasts or dimmable lighting drivers
- Cut-off relay per channel (suitable for capacitive loads, maximum 140 μF)
- Supports KNX Data Secure
- Manual output operation of 1-10 VDC outputs
- 20 logic functions
- Output timing
- Total data saving on power failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 70 mm (4 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Possibility of connecting different phases in adjacent outputs
- Conformity with the CE, RCM directives (marks on the right side)
