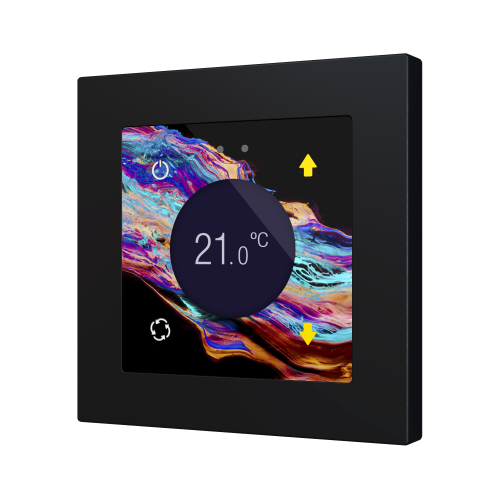

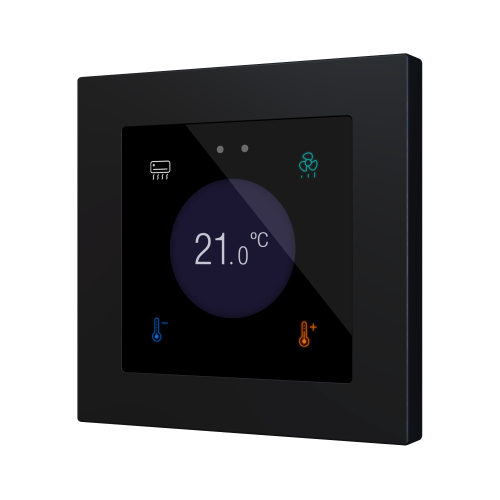

RGB backlit capacitive touch panel with round display in Flat 55 family (standard frames 55 x 55 mm), with proximity sensor, flat design, with total customisation. Flush fitting with Zennio ZS55 frames, switches and sockets. Anyone can create unique compositions, including images, icons, texts or logos, which are printed on a high-strength tempered glass. Room control is simple with the 4 buttons available and up to 4 indicators can be shown on its central display. The RGB backlit icons for buttons regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. Flat RGB 55 Display includes a thermostat, as well as 2 analog-digital inputs that may be configured for potential-free sensors and push buttons or temperature probes. Installation in standard mounting box with 55 x 55 frames of 1/2/3/4 modules. It is compatible with KNX Secure.
Accessories: temperature probe (included) and motion sensor.
Frame not included.
Description
Probe Input: Yes
Input Channels: 2
Medium: KNX TP
Range: Flat 55 RGB
Design Standard: Standard 55
Installation: Flush Mounted
IP Protection Level: IP20
Backbox Requirement: European Round
