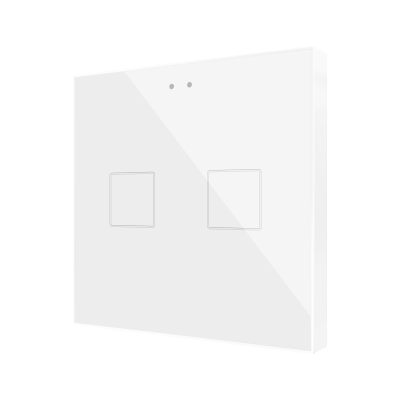

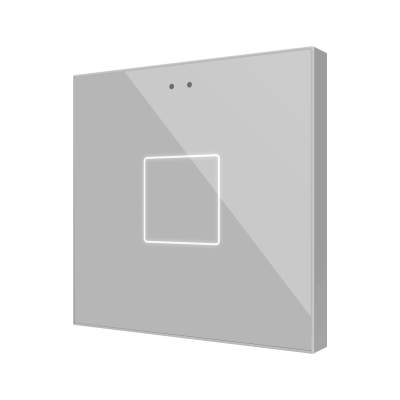

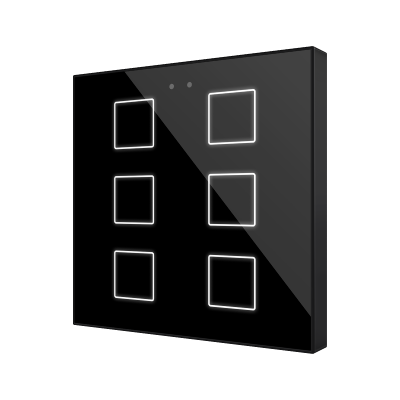

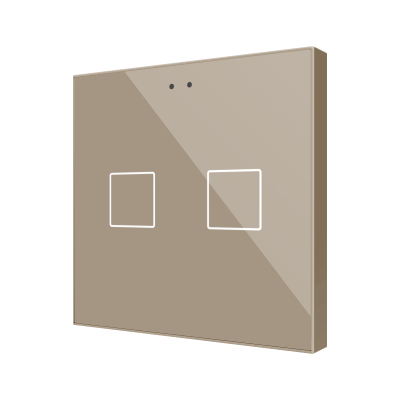

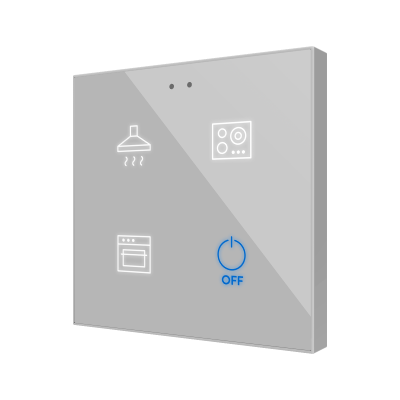

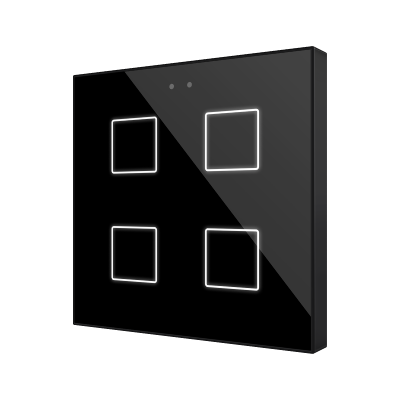

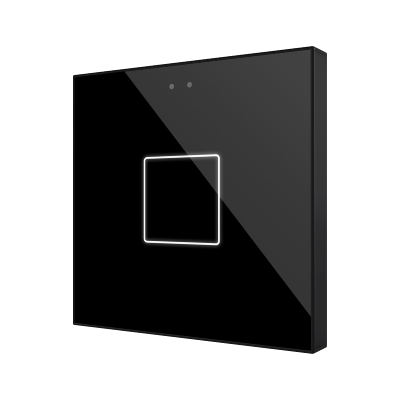

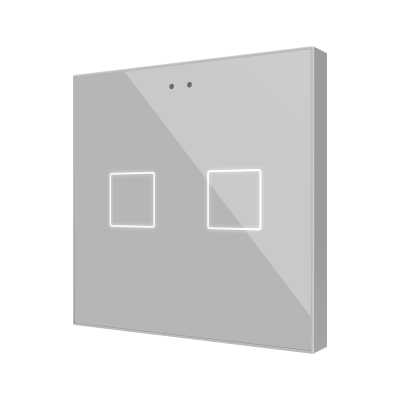

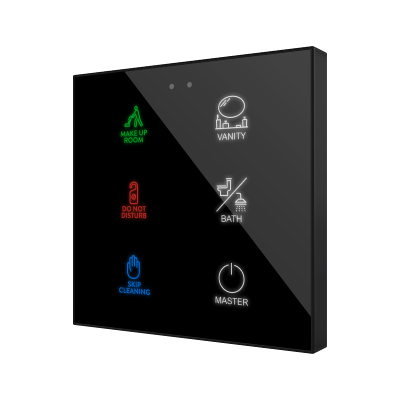

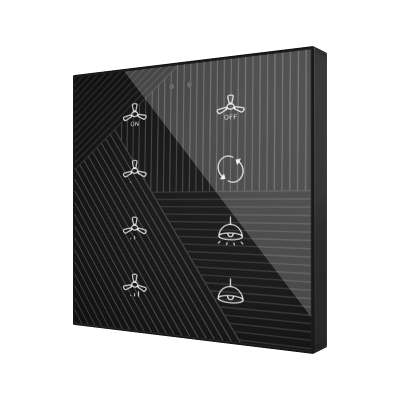

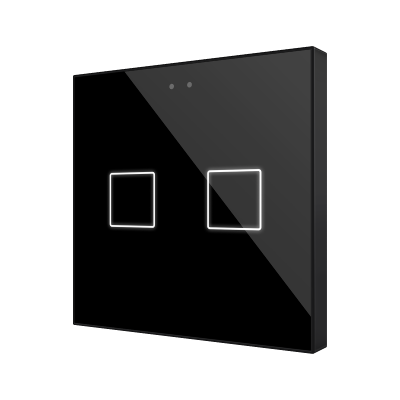

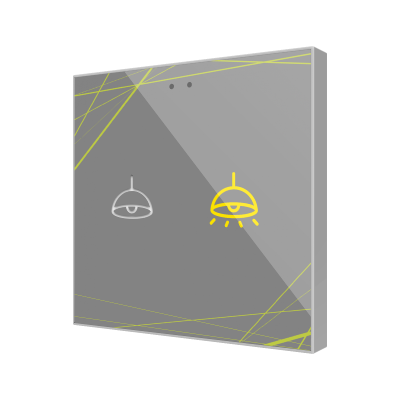

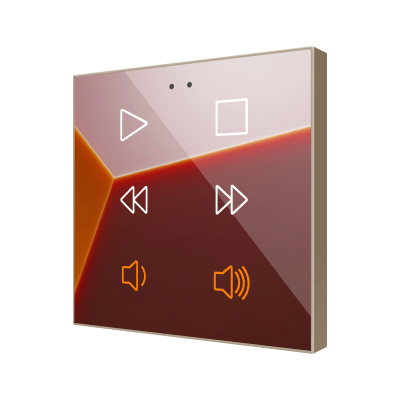

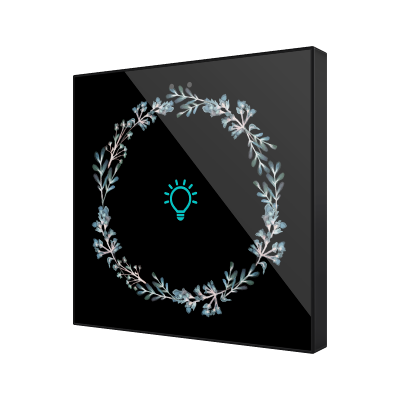

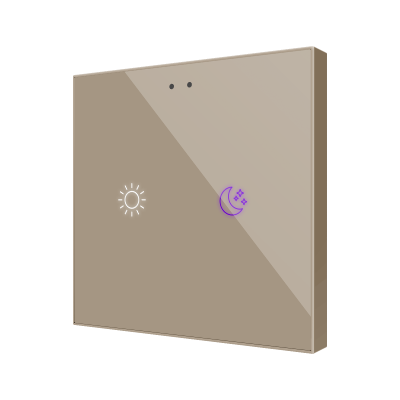

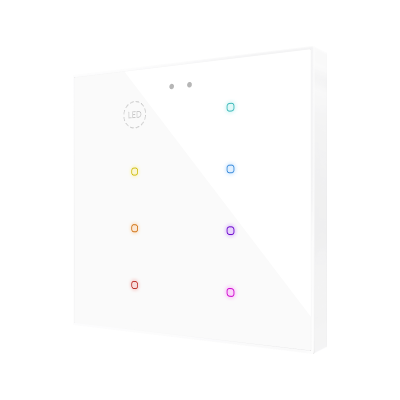

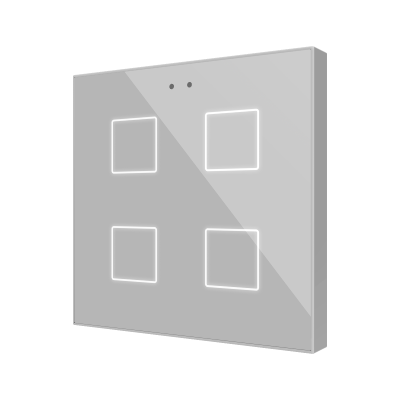

Customisable RGB backlit capacitive touch switches in the Flat family with proximity sensor and flat design (9 mm). Create unique designs including images, icons, texts or logos printed on tempered glass. 1, 2, 4, 6 or 8-button versions available all with backlit icons that adapt according to the ambient luminosity and proximity sensor. Flat RGB incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. It is compatible with KNX Secure.
Accessories: temperature probe and motion sensor.
Visit Touch My Design tool to customize your own Capacitive Switch.
FEATURES
- Customizable printed glass touch panel with 1/2/4/6/8 touch areas with RGB backlight and image customizable through web application
- Supports KNX Data Secure
- Thermostat
- 2 analog/digital inputs
- Built-in temperature sensor
- Touch confirmation through acoustic feedback
- Proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 81.9 x 81.9 x 36.5 mm (it protrudes 9 mm from the wall)
- Portrait or landscape flush mount on standard European, Italian, Australian and American mounting box
- Conformity with the CE, RCM directives (marks on the back side)
