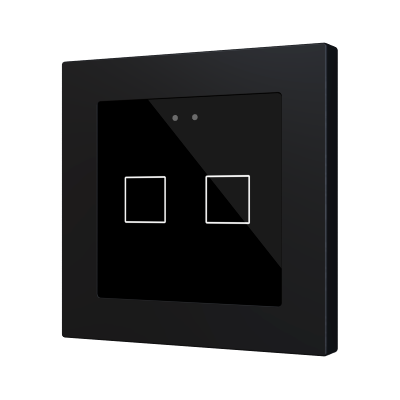

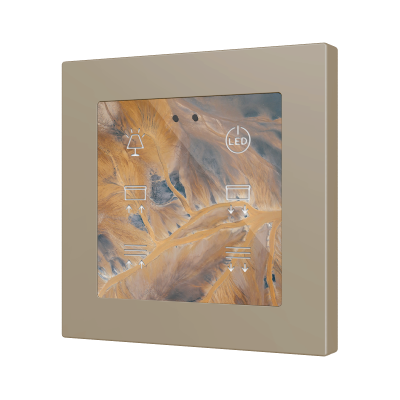

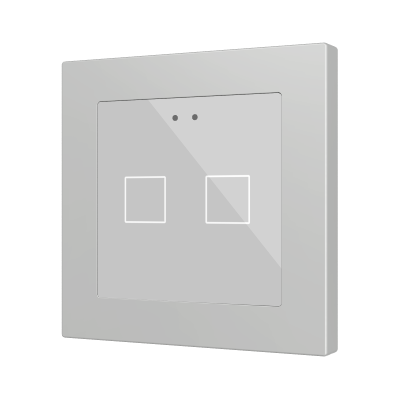

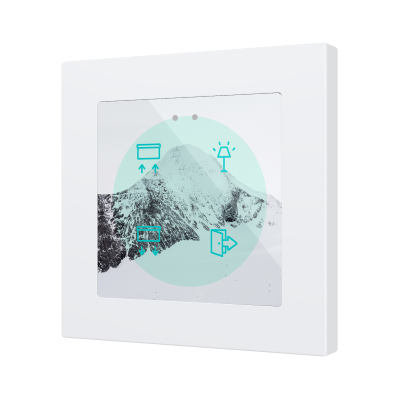

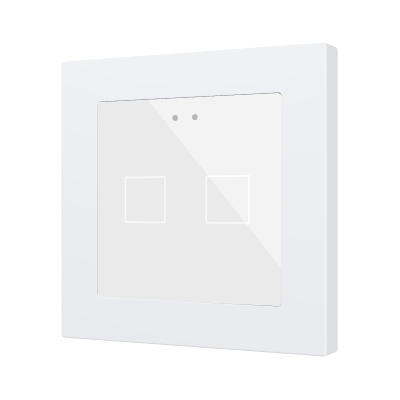

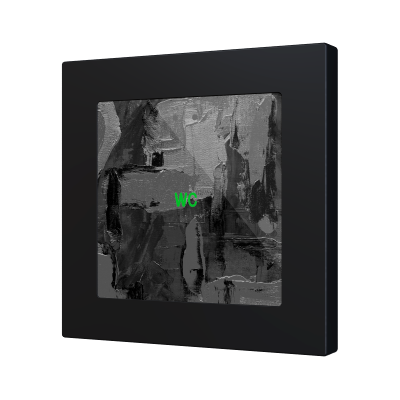

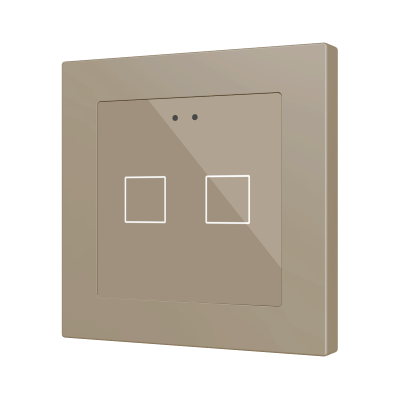

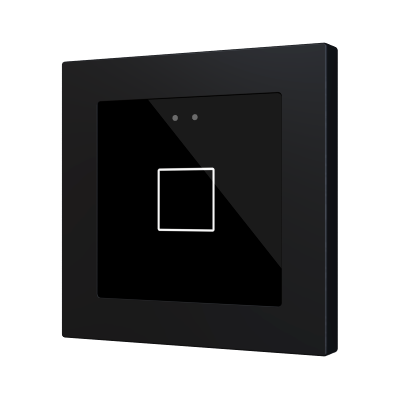

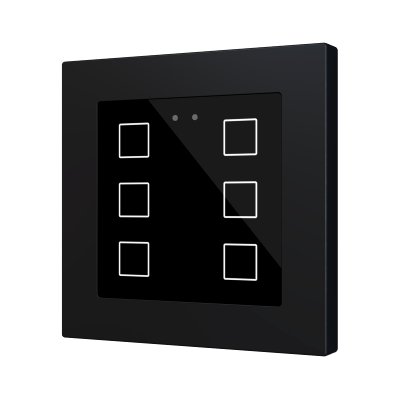

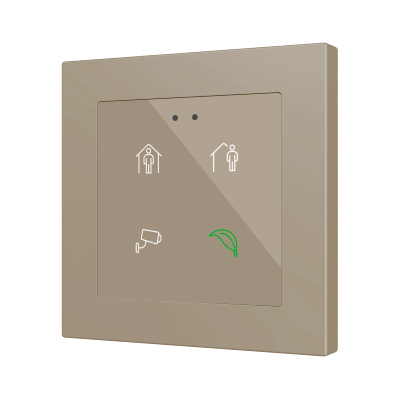

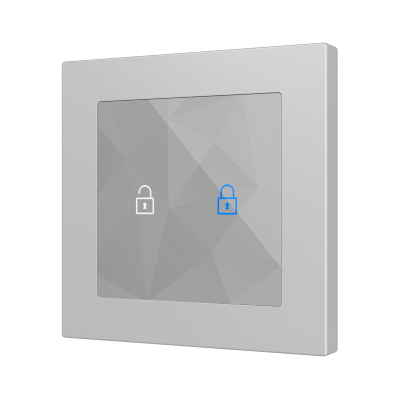

Customisable RGB backlit capacitive touch switches in the Flat 55 family (standard frames 55 x 55 mm) with proximity sensor and flat design (9 mm). Flush fitting with Zennio ZS55 frames, switches and sockets. Create unique designs, including images, icons, texts or logos printed on tempered glass. 1, 2, 4 or 6 button versions available all with backlit icons, that adapt according to ambient luminosity and proximity sensor. Flat RGB 55 incorporates an internal temperature probe and a thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Installation in standard mounting box with 55 x 55 frames of 1/2/4/6 modules (white, anthracite, silver or champagne). It is compatible with KNX Secure.
Accessories: temperature probe and motion sensor.
Frame not included.
Visit Touch My Design tool to customize your own Capacitive Switch.
FEATURES
- Customizable printed glass touch panel with 1/2/4/6 touch areas with RGB backlight and image customizable through web application
- Supports KNX Data Secure
- Thermostat
- 2 analog/digital inputs
- Built-in temperature sensor
- Touch confirmation through acoustic feedback
- Proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 55.8 x 55.8 x 36.2 mm (it protrudes 9 mm from the wall)
- Portrait or landscape flush mount on standard European, Italian, Australian and American mounting box
- Conformity with the CE, RCM directives (marks on the back side)
