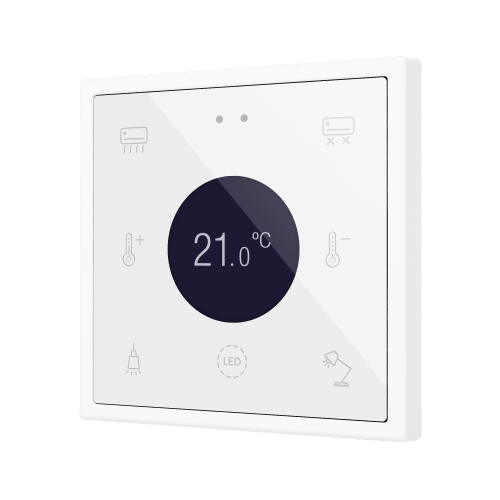

RGB backlit capacitive touch panel with round display in Flat 70 family (standard frames 70 x 70 mm), with proximity sensor, flat design, with total customisation. Flush fitting with Zennio ZS70 frames, switches and sockets. Anyone can create unique compositions, including images, icons, texts or logos, which are printed on a high-strength tempered glass. Room control is simple with the 4 buttons available and up to 4 indicators can be shown on its central display. The RGB backlit icons for buttons regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. Flat RGB 70 Display includes a thermostat, as well as 2 analog-digital inputs that may be configured for potential-free sensors and push buttons or temperature probes. Installation in standard mounting box with 70 x 70 frames of 1/2/3/4 modules.It is compatible with KNX Secure.
Accessories: temperature probe (included) and motion sensor.
Frame not included.
FEATURES
- Customizable printed glass touch panel with 7 touch areas with RGB
backlight and image customizable through web application
(https://tmd.zennioapps.com)
- Supports KNX Data Secure
- 1.18” OLED display (128x128 pixels)
- 2 analog/digital inputs (binary input or temperature probe)
- Thermostat
- Clock functionality (subject to updating through devices with RTC or NTP client)
- Touch confirmation through acoustic feedback
- Proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 70.0 x 70.0 x 36.1 mm (it protrudes 9.5 mm from the wall)
- Flush mount on back box
- Conformity with the CE, RCM directives (marks on the back side)
