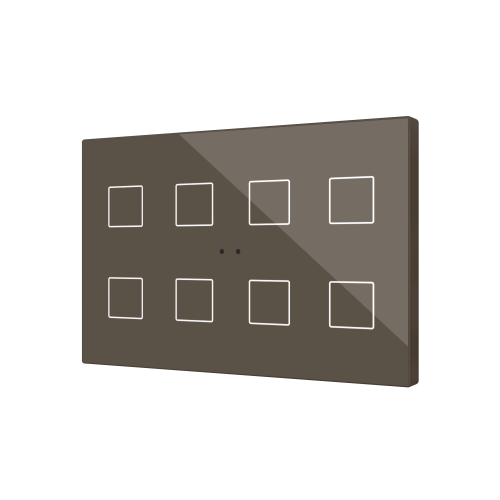

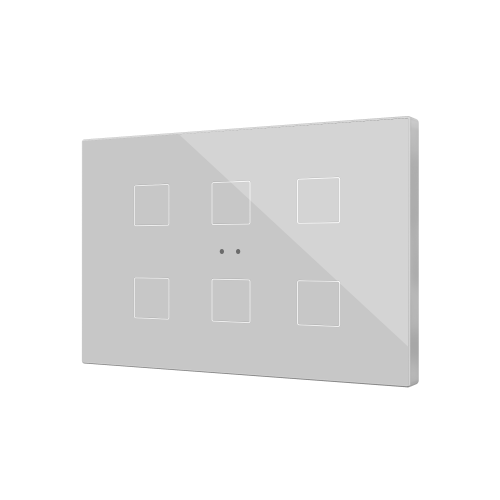

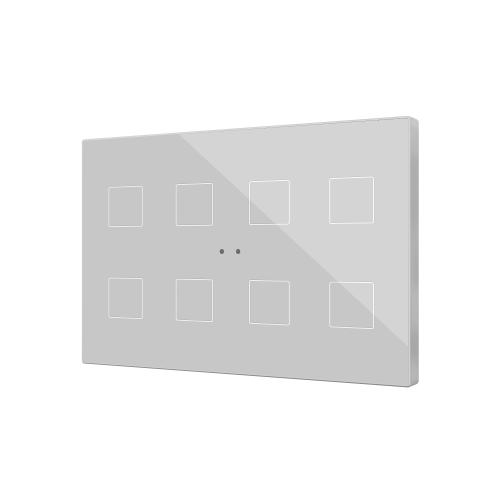

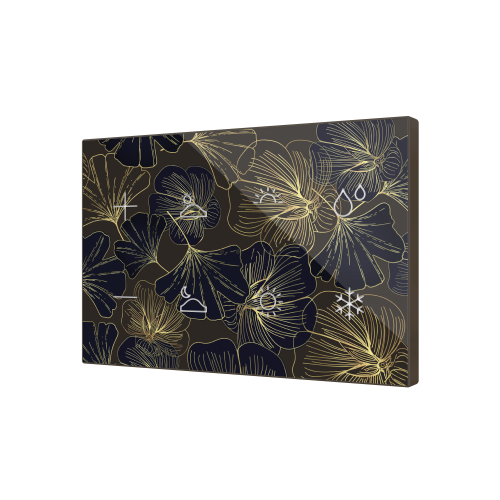

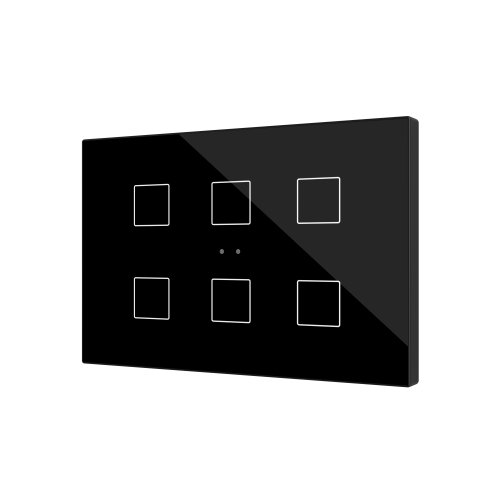

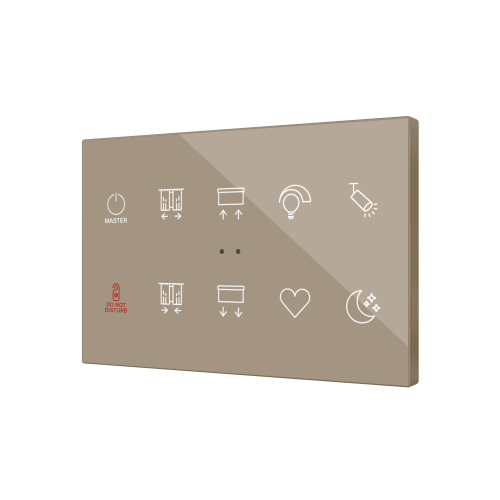

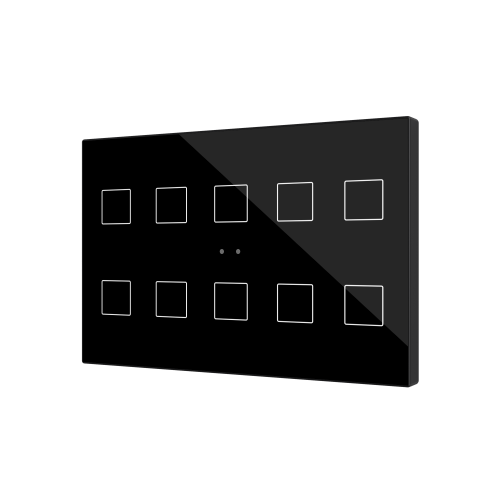

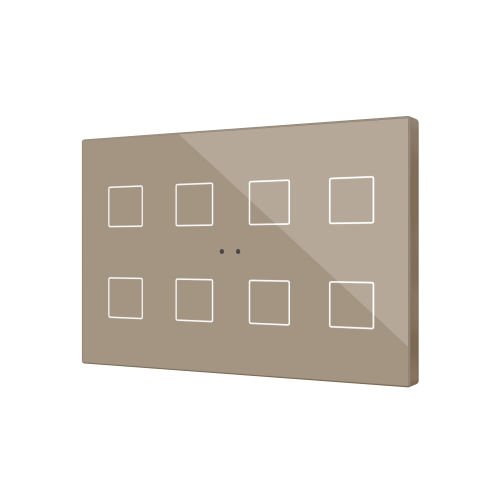

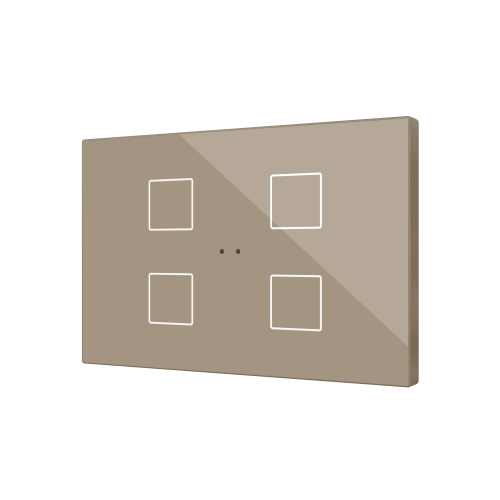

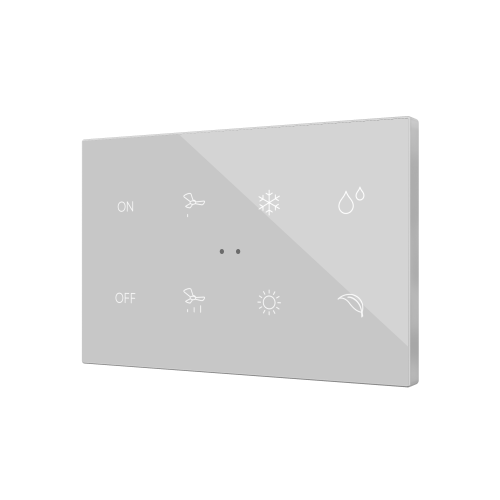

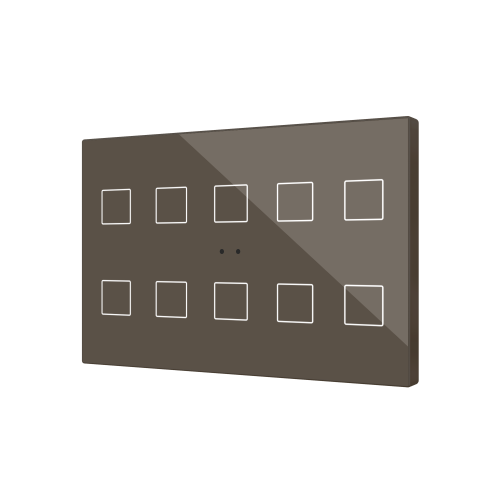

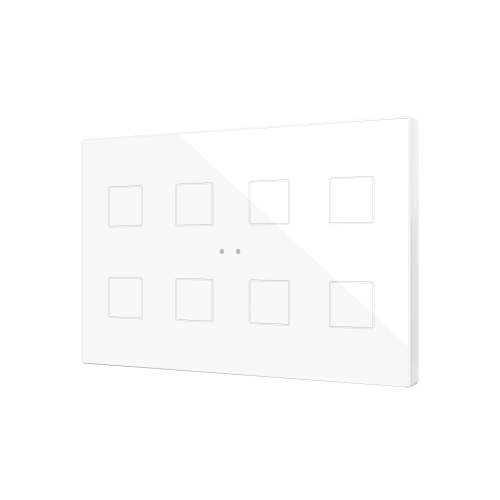

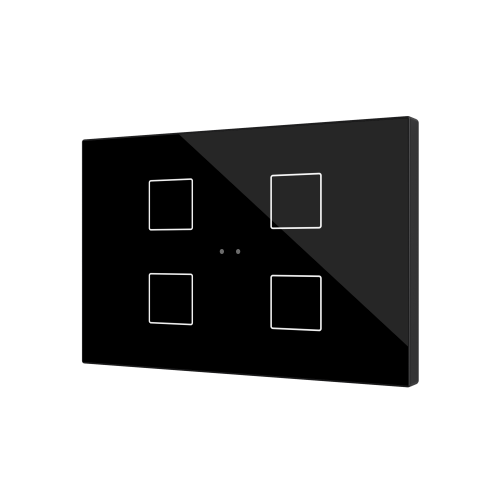

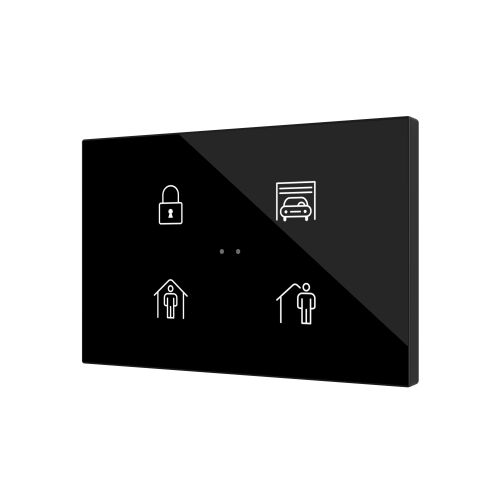

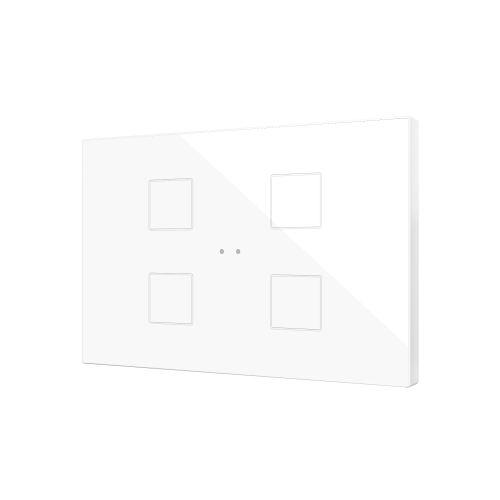

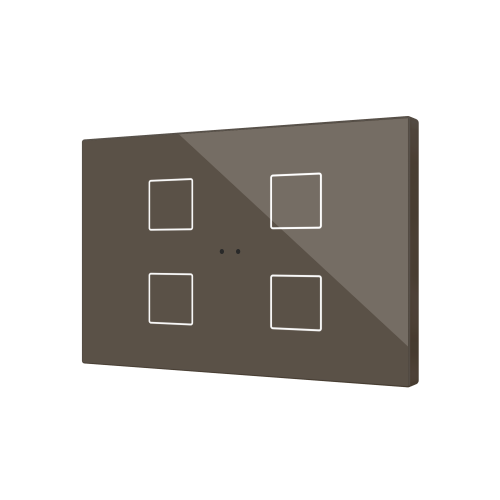

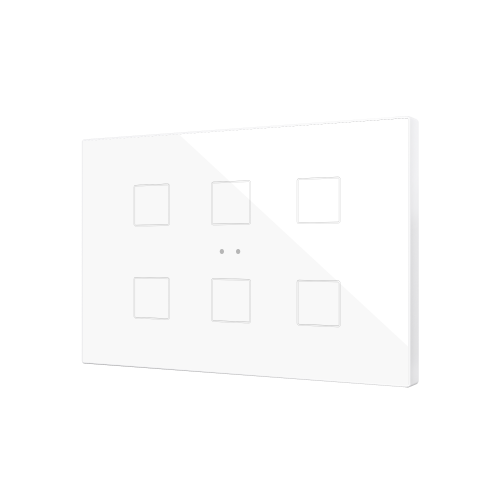

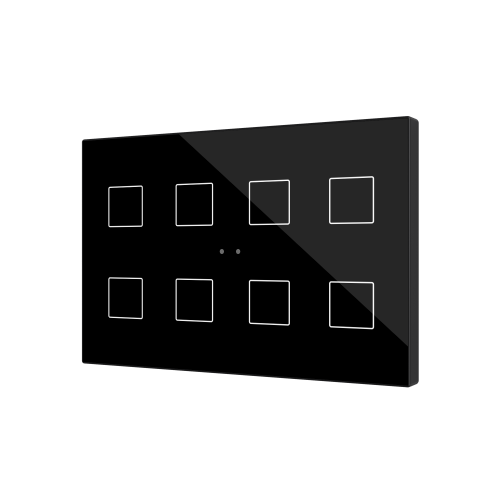

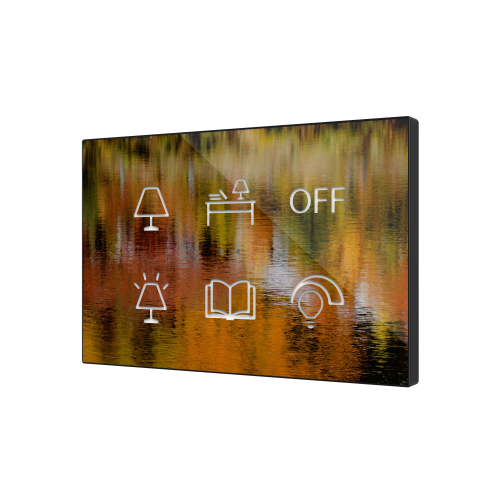

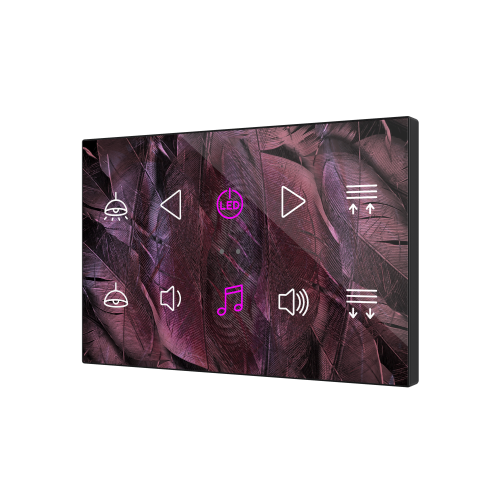

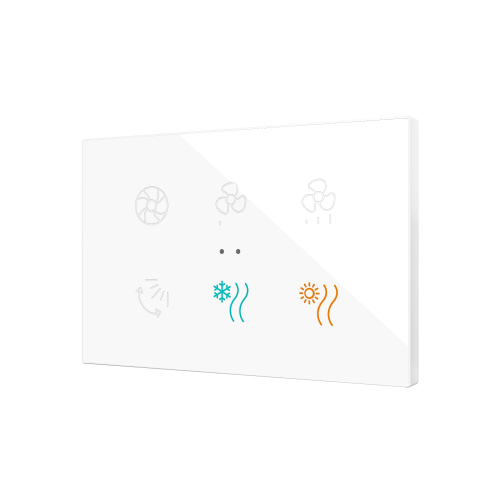

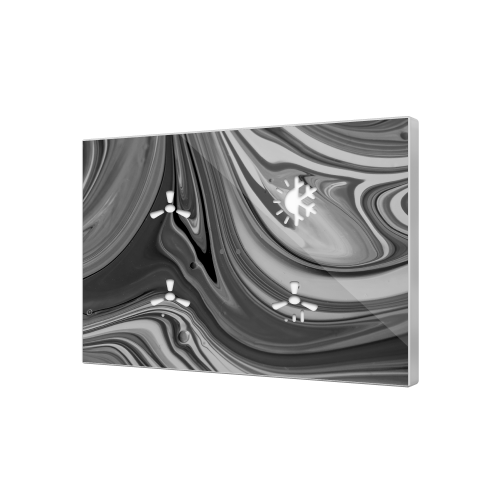

Create unique designs, including images, icons, texts or logos printed on tempered glass. 4, 6, 8 or 10-button versions available all with RGB backlit icons that adapt according to proximity sensor. Flat RGB XL incorporates an internal temperature probe and thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Installation in European, Italian, Australian, American or British standard back box. It is compatible with KNX Secure.
FEATURES
- Customizable printed glass touch panel with 4/6/8/10 touch areas with RGB backlight and image customizable through web application (https://tmd.zennioapps.com)
- Supports KNX Data Secure
- Thermostat
- 2 analog/digital inputs
- Built-in temperature sensor
- Touch confirmation through acoustic feedback
- Proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 120.1 x 81.7 x 36.3 mm (it protrudes 9 mm from the wall)
- Portrait or landscape flush mount on standard European, Italian, Australian and American mounting box
- Conformity with the CE, RCM directives (marks on the back side)
