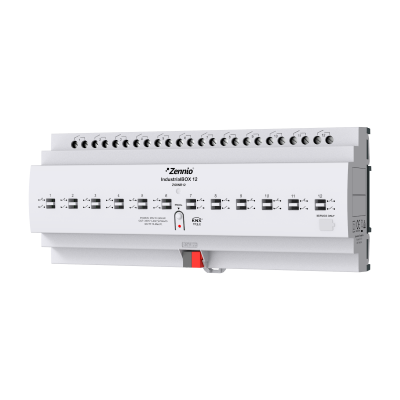

Actuator for DIN-rail (12 units) with 12 individual outputs with industrial relays (20 A C-Load). It allows manual control of its outputs through switches that directly control the relays, independently of the power supply. It includes 20 independent logical functions. It is compatible with KNX Secure.
FEATURES
- 12 individual outputs up to 20 A
- Outputs suitable for capacitive loads, maximum 200 μF
- Possibility of connecting different phases in adjacent outputs
- Supports KNX Data Secure
- 2 Master Light controls
- Manual control for physical operation/actuation of the relay
- 20 logic functions
- Output timing
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 212 mm (12 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
