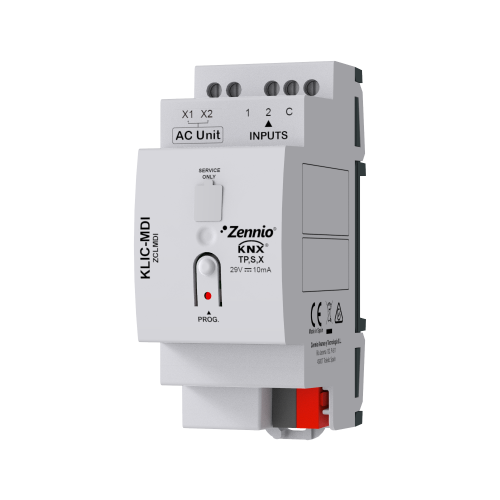

Zennio gateway to control Midea VRF and Commercial range air conditioning units from the KNX system in a bidirectional way through the X1/X2 connector. It includes 2 analog-digital inputs for temperature probes, motion sensor or dry contact binary inputs (switches, sensors or push buttons) and 10 logical functions. It is compatible with KNX Secure. Accessories: temperature probe and motion sensor.
FEATURES
- Bidirectional communication with Midea HVAC units
- 2 analog/digital inputs
- 10 logic functions
- KNX Data Secure supported
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 36 mm (2 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with CE, RCM directives (marks on the right side)
