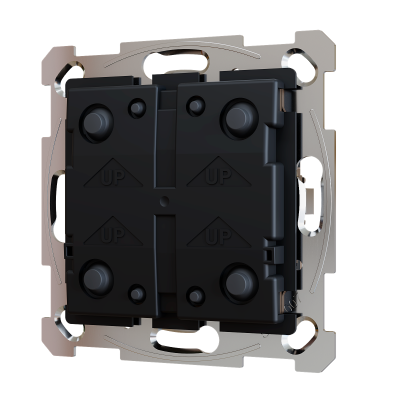

KNX single or double push button with bottom and top press, with conventional appearance and smooth pressing feel. Designed in 55 x 55 format for installing together with Zennio’s ZS55 frames and sockets. KNX Soft push buttons are available as single-button or double-button versions with activation on the bottom or on both the top and bottom, depending on the model. It incorporates an internal temperature probe and a thermostat as well as an analog input to be configured as temperature probe.
Thanks to the Soft push buttons, you’ll be able to integrate conventional appearance in a KNX installation, offering an outstanding haptic experience.
It is compatible with KNX Secure. Accessories: temperature probe.
KNX Soft push button 55×55 is available in the following models:
- ZS55CSOFTXY(A/S/MW/C) ⇒ Plain design without icons
- ZS55CSOFT1YL(A/S/MW/C) ⇒ Light icon (single push button -X = 1-)
- ZS55CSOFT1YK(A/S/MW/C) ⇒ Key icon (single push button -X = 1-)
- ZS55CSOFT1YD(A/S/MW/C) ⇒ Doorbell icon (single push button -X = 1-)
- ZS55CSOFT2YSH(A/S/MW/C) ⇒ Shutter icons (double push button -X = 2-)
- ZS55CSOFTXY(A/S/MW/C)C ⇒ Custom design with custom icons through Touch My Design tool
Frame not included.
Available with different number of buttons and number of push areas:
X = 1 (single push button) / 2 (double push button)
Y = 1 (tilt down for single push button) / 2 (tilt up and down for single push button and tilt down for double push button) / 4 (tilt up and down for double push button)
Finishes: anthracite (A), silver (S), matt white (MW) and champagne (C).
FEATURES
- Push button with up to 4 push areas depending on the used covers (not included)
- Supports KNX Data Secure
- Available in the following colors: anthracite black (RAL 9004 X = 5), silver (RAL 9006 X = 6), white (RAL 9016 X = 9) and champagne (RAL 1035 X = 4)
- Input for temperature probe
- Thermostat
- Built-in temperature sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 55 x 55 x 28.8 mm (it protrudes 9.5 mm from the wall)
- Flush mount on back box
- Conformity with the CE, RCM directives (marks on the back side)
