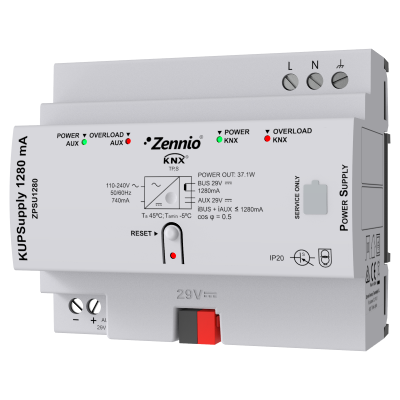

KNX Universal System Power Supply with additional 29 V DC output. Maximum current 1280 mA. 110-240 V ~ 50/60 Hz input voltage. Installation in DIN-rail (6 units).
FEATURES
- 1280 mA KNX power supply with 29 VDC auxiliary output
- 110-240 VAC 50/60 Hz power input
- Nominal output current: 1280 mA (KNX+Aux)
- Power generation for the KNX system (with LED indicator)
- Short-circuit and overvoltage protection
- Reset button and overload status LEDs
- KNX coil included
- Dimensions 68 x 90 x 105 mm (6 DIN units)
- DIN rail mounting (IEC 60715 TH35), with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
