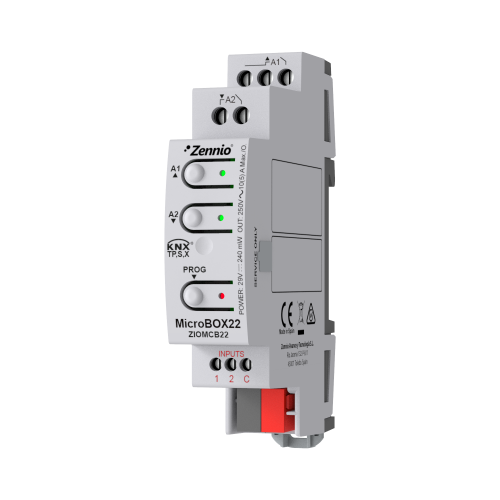

Multifunction actuator for DIN-rail (1 unit) with 2 outputs (10 A C-load), which offer multiple configurations as shutter channels or individual outputs. It allows manual control of its outputs through the push buttons on the cover and monitor the status. It also includes a logical function module with 10 functions. It incorporates 2 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It is compatible with KNX Secure.
Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.
FEATURES
- 2 configurable outputs: shutter channel or individual outputs (up to 2)
- KNX Data Secure supported
- 2 analog/digital inputs
- Manual output operation with push button and LED status indicator
- 10 logic functions
- Output timing
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 17.5 mm (1 DIN unit)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Possibility of connecting different phases
- Conformity with the CE, RCM directives (marks on the right side)
