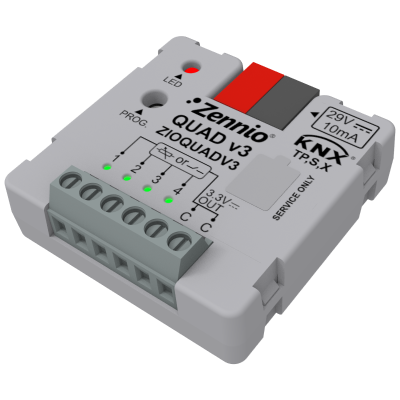

QUAD v3 is an analog/digital sensor that offers a large variety of functionality. Its 4 optocoupled multi-function inputs may be configured as digital inputs for sensors and potential-free push buttons, as temperature probes or as a motion sensor. Four room thermostats for heating/cooling control systems included. It is compatible with KNX Secure. Accessories: Temperature probes and motion sensor.
FEATURES
- 4 configurable inputs as binary input, temperature probe (NTC with customizable curve or PT1000) or motion sensor.
- With input status LED indicators.
- Supports KNX Data Secure.
- 4 instances for advanced master light.
- 4 thermostats.
- Total data saving on KNX bus failure.
- Integrated KNX BCU (TP1-256).
- No external supply required different from bus.
- Dimensions: 39.1 x 39.1 x 14 mm.
- Can be mounted within distribution boxes or wall back boxes or DIN rail.
- Conformity with the CE, RCM directives (marks on the front side).
