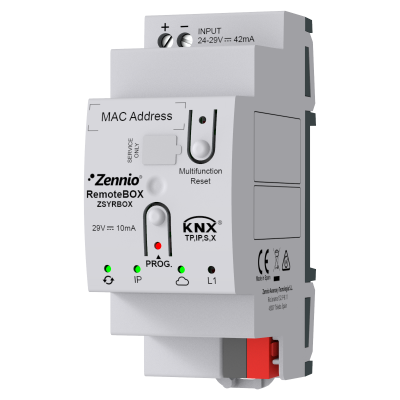

DIN rail device (2 units) that allows the remote control of the installation through Zennio Remote, being able to distribute 100 controls in up to 12 customizable pages. It includes 10 logical functions. It is compatible with KNX Secure.
Advanced features can be activated with the following licenses:
- License for 80 additional controls:
- Ref. ZLICRB80V – Virtual License
- ZenVoice License – Voice Control License:
- Ref. 8500008 – Virtual License
FEATURES
- Remote control with Zennio Remote
- Compatibility with ZenVoice through license
- Supports KNX Data Secure
- External 24-29 VDC power supply
- Ethernet connection RJ45 10/100Mbps Base T
- 10 logic functions
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 36 mm (2 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, UKCA, RCM directives (marks on the right side)
