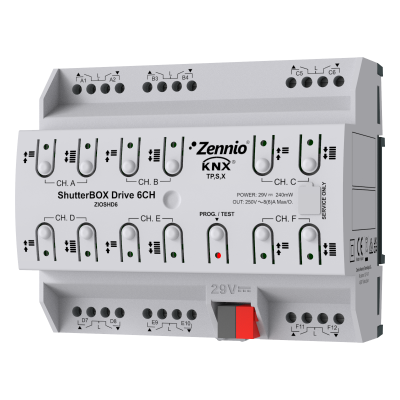

6-channel shutter actuator for DIN rail (6 units), which allows automatic travel times measurement through current detection.
It includes 6 alarms per channel, a module of 20 logic functions and allows manual control of the outputs with LED status indication. Among its complete functionality, the event-driven automatic control stands out, calculating the position of the sun at each moment to be able to adjust the position of the shutter and the slats.
It is compatible with KNX Secure.
FEATURES
- Up to 6 shutter channels
- Automatic travel time measurement through current detection (only possible when using AC powered shutters)
- Possibility of controlling blinds/shutters with 2 or 3 dry contacts
- Manual output operation with push button and LED status indicator
- Supports KNX Data Secure
- 20 logic functions
- Output timing
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 105 mm (6 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Possibility of connecting different phases in adjacent outputs
- Conformity with the CE, RCM directives (marks on the right side)
