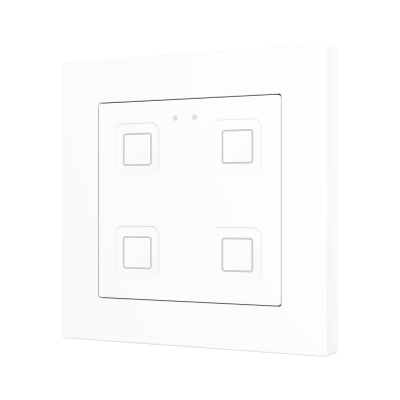

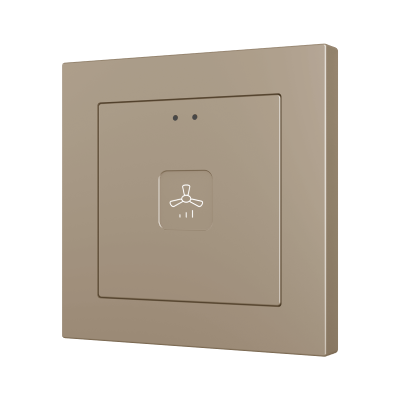

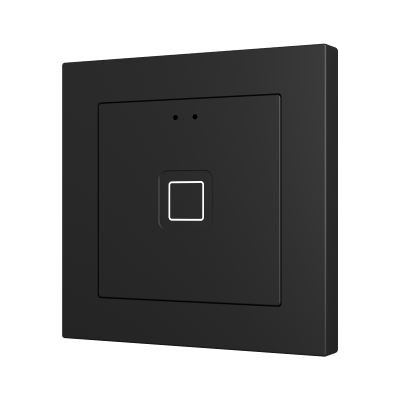

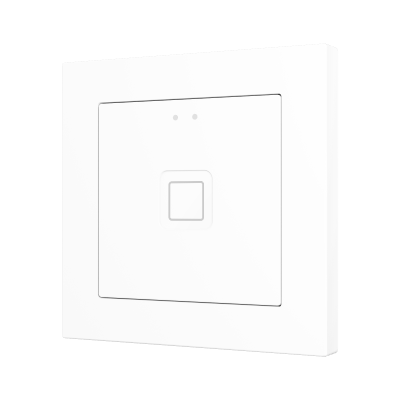

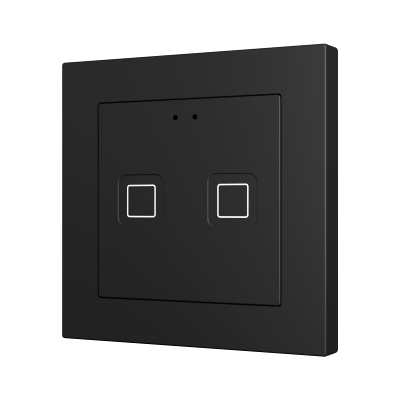

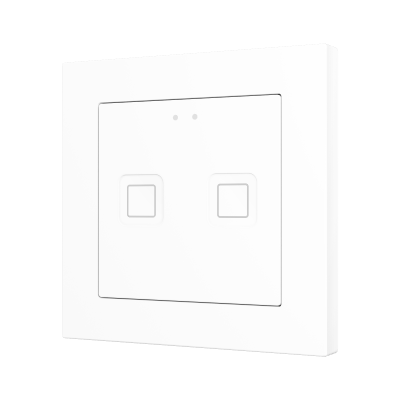

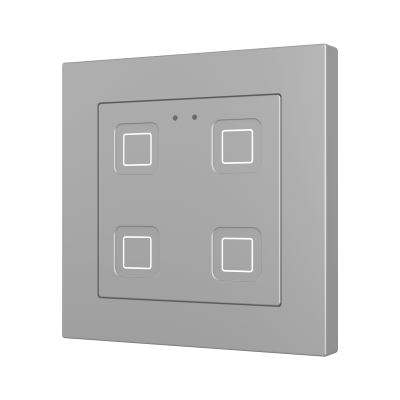

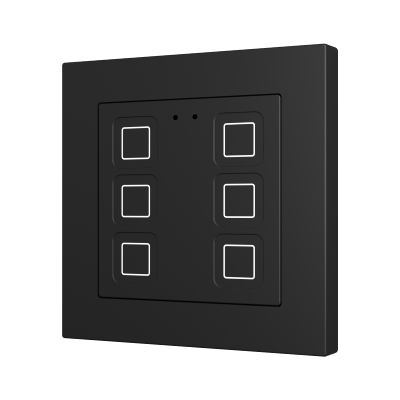

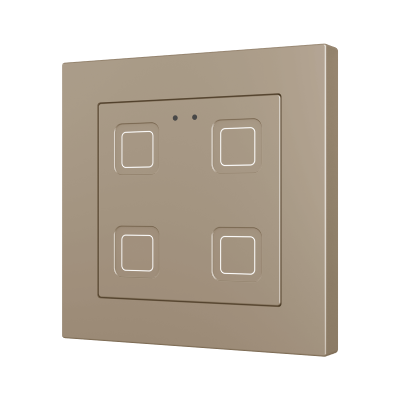

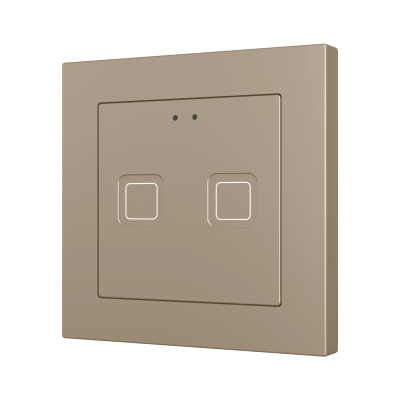

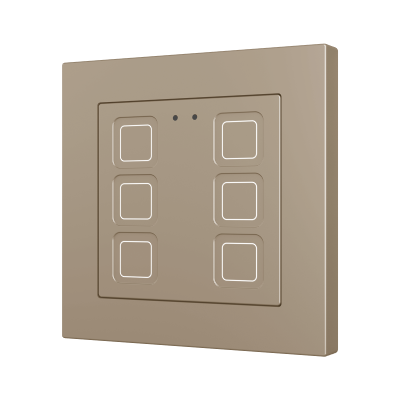

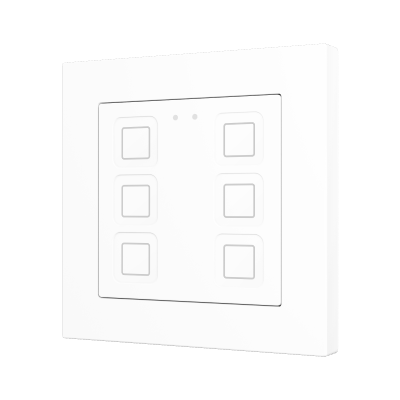

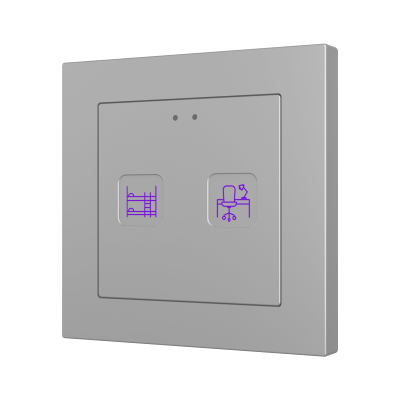

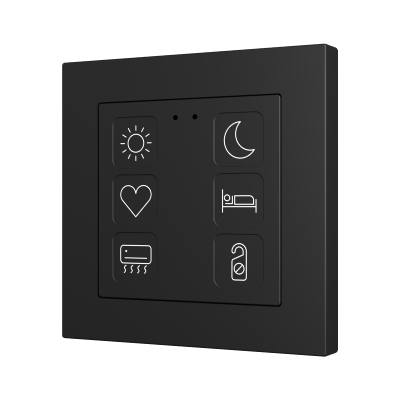

Family of flush fitting polycarbonate capacitive touch switches with customisable icons, to be combined with 55 x 55 mm frames and Zennio ZS55 switches and sockets. 1, 2, 4 or 6-button versions all available with RGB backlit icons that adapt according to ambient luminosity and proximity sensor. Tecla RGB 55 incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Installation in standard back box with 55 x 55 1 to 4-gang frames.
Frame not included.
It is compatible with KNX Secure.
Accessories: temperature probe and motion sensor.
Visit Touch My Design tool to customize your own Capacitive Switch.
FEATURES
- Customizable polycarbonate surface with 1/2/4/6 touch areas with RGB backlight and customizable icons through web application
- Supports KNX Data Secure
- Thermostat
- 2 analog/digital inputs
- Built-in temperature sensor
- Touch confirmation through acoustic feedback
- Proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 55.5 x 55.5 x 37.3 mm
- Portrait or landscape flush mount on standard European, Italian, Australian and American mounting box
- Conformity with the CE, RCM directives (marks on the back side)
