ZS55 is the Zennio series of 55 x 55 mm switches and sockets. They have an elegant and timeless design. They are flush fitting with frames and a perfect integration with capacitive switches Flat 55 and Tecla 55.

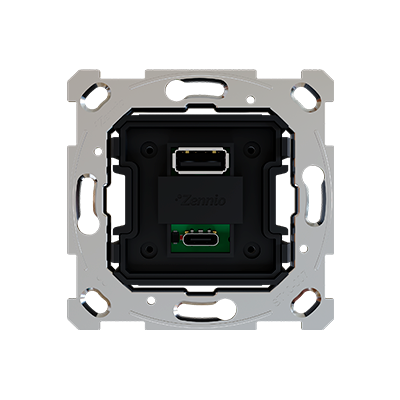

Technical features USB C+A Charger
- Nominal voltage: 100 – 240 V ~
- Output voltage: 5 V DC MBTS
- Output current: 3.5 A @ 240 V AC
- Standby power consumption < 0.05 W
- Screw terminals
- Screw fixing. Claws are optional
References USB C+A Charger (sold separately)
- Z555 – Cover plate for double USB C+A charger 55 x 55 mm – ref. ZS55C2UCAY
- ZS55 – 1-gang Frame – ref. 9800001XX
- ZS55 – 2-gang Frame – ref. 9800002XX
- ZS55 – 3-gang Frame – ref. 9800003XX
- ZS55 – 4-gang Frame – ref. 9800004XX
Y = A (Anthracite) / S (Silver) / MW (Matt white) / C (Champagne)
XX = 05 (Anthracite) / 06 (Silver) / 09 (Matt white) / 04 (Champagne)
