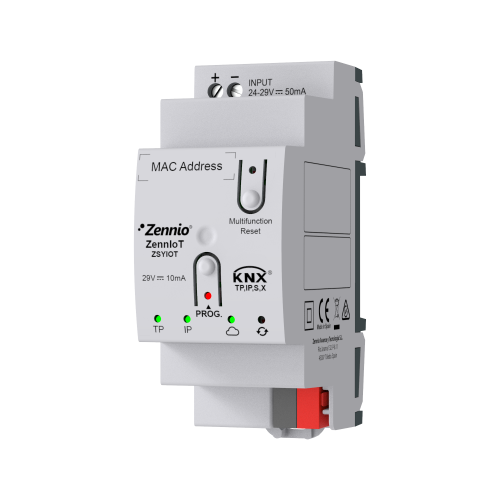

DIN rail device (2 units) that allows the remote control of the installation through Zennio Remote, being able to distribute 100 controls in up to 12 customizable pages. It features a KNX-IP interface, which allows addressing, programming or monitoring components located in a KNX TP network from the Ethernet side by using KNXnet/IP Tunneling protocol, with up to 10 parallel connections. It includes 10 logical functions. It is compatible with KNX Secure.
Advanced features can be activated with the following licenses:
-
License to expand the number of controls to 240:
- Ref. ZLICR240V – Virtual License
- ZenVoice License – Voice Control License:
- Ref. 8500008 – Virtual License
FEATURES
- KNXnet/IP tunnelling protocol (up to 10 connections)
- Maximal APDU length of 254 bytes
- NTP clock functionality
- KNX Data Secure supported and KNX IP Secure
- Remote control with Zennio Remote
- Compatibility with ZenVoice through license
- External 24-29 VDC power supply
- Ethernet connection RJ45 10/100Mbps Base T
- 10 logic functions
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 36 mm (2 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
