We are excited to announce the launch of the Glass Touch Smart / Plus Touchscreen, the latest addition to MDT’s front-end portfolio. Boasting a 6-inch TFT-colour display (1440 x 720 Pixel), the Glass Touch Smart can control up to 64 functions on independent levels and 12 statuses in standby providing a central point of control for a KNX system. It’s elegant design seamlessly combines glass and brushed aluminium materials with black / white finishes available, both available in horizontal or vertical oriental.
Two variants will be available providing further flexibility to suit the specific requirements of projects across varying scales. The Smart being the standard variant which is now available for orders, and the Smart Plus which provides a number of additional features and will be launched late 2025.
Functions:
- Switching, dimming, blinds / shutter, scenes
- Send values, switch/send values short/long, status
- Operating mode switchover (mode selection)
- Temperature setpoint shift, temperature control
- Colour control (HSV, RGB(W))
- Page change

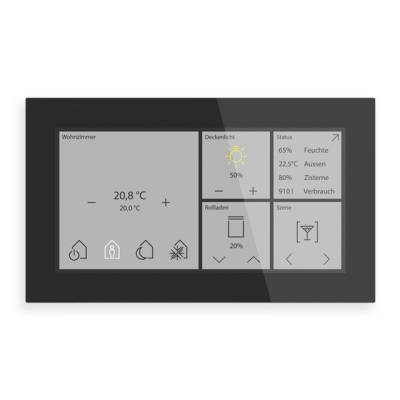

Glass Touch Smart
Key features:
- High-resolution 6-inch TFT-colour display (1440 x 720 Pixel)
- White circumferential orientation light
- Dimensions (H x W x D): 92 x 160 x 12.5 mm
- Up to 64 functions on independent levels and 12 statuses in standby
- Shortcut function (to a specific level)
- Comfortable room temperature controller with temperature sensor for heating and cooling operation
- Logic functions, scene control, innovative group control
- Individual customised design according to customer requirements (Logo, Background picture, design colour)
- Installation on single European backbox advised
- Anti-theft / anti-dismantling protection
- KNX Data Secure
- Auxiliary bus power required
Product Link: Click Here
Glass Touch Smart Plus
Additional features:
- Circumferential RGBW-background illumination to signal individual operational status, alarms and orientation light
- Integrated loudspeaker for acoustical feedback (button press, signalling of alerts)
- Security against unauthorised access through code lock function (4 users)
- 2 Binary inputs to connect potential free contacts (Mechanical Push-buttons, Switches, window contacts)
- With time switch
Product Link: Coming Soon
