Zennio, one of our key suppliers, are known as one of the leading KNX manufacturers in the market and are constantly updating / expanding their control portfolio to best meet market demands. We are happy to reveal a number of further updates / additions to their range. See breakdown below.

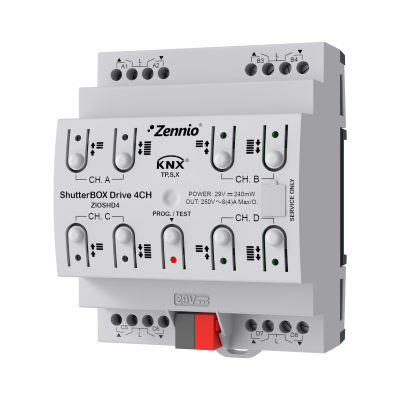

ShutterBOX Drive 4CH
Control of blind / shutter within a KNX system a wide spectrum of system benefits, from ease of use and privacy to advanced efficiency of HVAC components by working with and against solar gain. The new ShutterBOX Drive 4CH from Zennio provides control up to 4-channel blinds / shutters with automatic travel times measurement through current detection. It includes 6 alarms per channel, a module of 20 logic functions and allows manual control of the outputs with LED status indication. Among its complete functionality, the event-driven automatic control stands out, calculating the position of the sun at each moment to be able to adjust the position of the shutter and the slats. It is compatible with KNX Secure.
Key features:
- Up to 4 shutter channels
- Automatic travel time measurement through current detection
- Possibility of controlling blinds/shutters with 2 or 3 dry contacts
- Manual output operation with pushbutton and LEDE status indicator
- Supports KNX Data Secure
- 20 logic functions
Product Link: Click Here

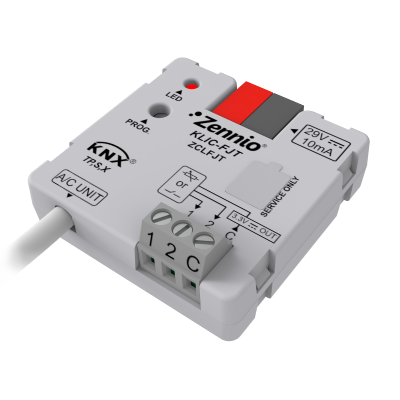

KLIC-FJT
Zennio has recently expanded their KNX-AC unit gateway range to now include a KLIC- FJT variant, allowing bidirectional control of Fujitsu, General, Hiyasu and Fuji Electric air conditioning units. The KLIC- FJT device includes 2 analog-digital inputs for temperature probes, motion sensor or dry contact binary inputs (switches, sensors or push buttons) and 10 logical functions.
Key features:
- Bidirectional communication with Fujitsu/General/Hiyasu HVAC units
- 2 analog/digital inputs
- 10 logic functions
- Supports KNX Data Secure
Product Link: Click Here

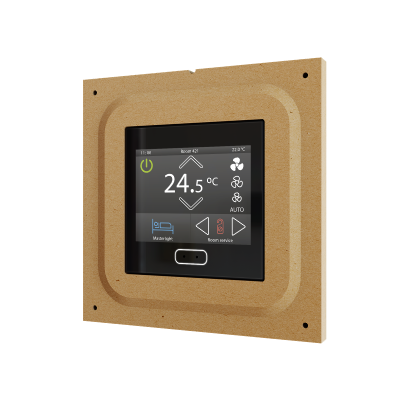

Accessory for flush mounting Tecla, Flat and Z35 keypads:
Zennio’s popular Tecla, Flat and Z35 keypads provide tailored control of a KNX installation and offer a vast array of customisation options to fulfil the specific requirements at each keypad location. The addition of a flush installation options, available via a plaster-in backbox, further expands the design options within the associated ranges and are now available at My KNX Store.
- Accessory for Tecla range: Click Here
- Accessory for Flat range: Click Here
- Accessory for Z35 range: Click Here
For more information contact a member of the My KNX Store.
T: 0191 497 0777
E: knx@myknxstore.co.uk
