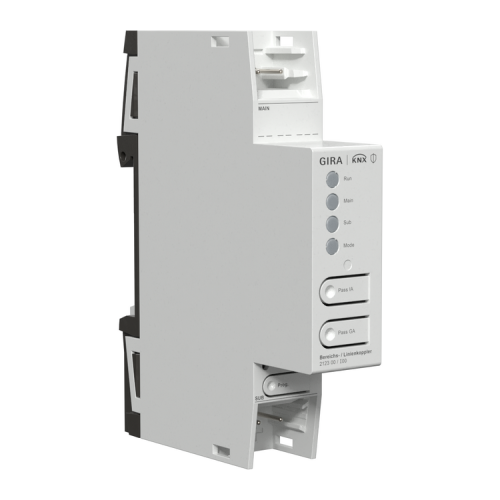

Area or line coupler for KNX

Features

• Provides a data link between two KNX lines/segments/areas and ensures galvanic isolation between these lines/segments/areas.
• Can be operated as an area coupler, line coupler, segment coupler or amplifier by addressing.
• Use as a segment coupler to extend a line with additional line segments, with a filter table configurable for the line segment.
• Filter functions for group telegrams and physically addressed telegrams can be configured separately in the ETS.
• Manual operation to deactivate the filter functions (separately for group telegrams and physically addressed telegrams).
• Indication of the current operating mode and status of the filter functions via multi-coloured status LEDs.
• Filtering, forwarding and blocking of encrypted and unencrypted telegrams regardless of start-up as a KNX Data Secure product.
• Secure proxy for connecting an unencrypted and encrypted line (e.g. in use between a building (unencrypted line) and the outside (encrypted line)) or when using two devices to create a secure bridge between two unencrypted lines.
• Automatic setting of the functionality as a secure proxy in ETS6 after secure start-up using a device certificate.
• Configuration and start-up of the device from ETS 5 from version 5.7.7 when used as an area coupler, line coupler, or amplifier. With ETS 6 from version 6.1.0 (recommended), additional use as a segment coupler or secure proxy.

Technical data

Notes

• KNX Data Secure compatible.
• Firmware can be updated using the Gira ETS Service App (additional software).
