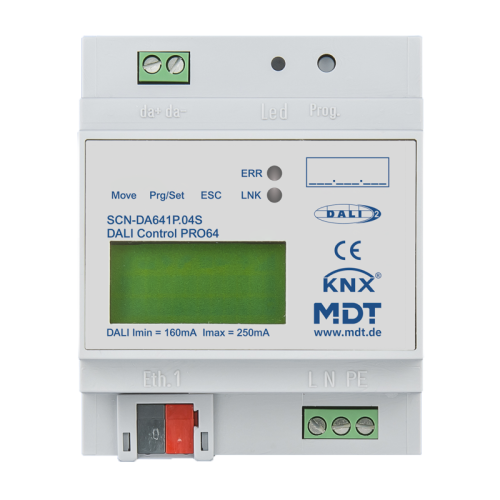

The MDT DALI Control PRO64 Gateway is a multi-master application controller for controlling electronic ballasts with DALI interface via the KNX installation bus.The device transforms switching and dimming commands from the connected KNX system into corresponding DALI telegrams, or status and event information from the DALI bus into KNX telegrams. The DALI Control PRO64 Gateway has a DALI output which can control up to 64 ECGs. In addition, up to 8 DALI-2 motion detectors or light sensors can be connected.
- Production in Germany certified according to ISO 9001
- Individual control of up to 64 ECG/16 DALI groups
- KNX Secure device
- Supports DALI and DALI-2 standard
- Up to 8 DALI-2 motion detectors or light sensors can
be connected additionally
-
Innovative HSV colour control, RGB, RGBW and XY
colour according to Dali DT8 standard, 64 individual Channels/16 DALI groups
-
Tunable White, colour temperature control
64 individual Channels/16 DALI groups
- Supports different DALI DT6/DT8 ECG
- Integrated colour control module for time dependent control
- Manual operation for all 16 groups
- 16 scenes with individual dimming times
- Energy saving function, 16 flexible standby groups for switching
off any individual channels/groups of ECGs (via additional KNX
switch actuator)
- Simple group attribution directly on the device
- Dali Commissioning via Webbrowser or directly on the
device display
- Detection of faulty lamps and faulty ECGs, quick exchange of ECG
-
Free DCA app for commissioning the DALI bus system
- Commissioning with ETS5 or higher, 3 years warranty
